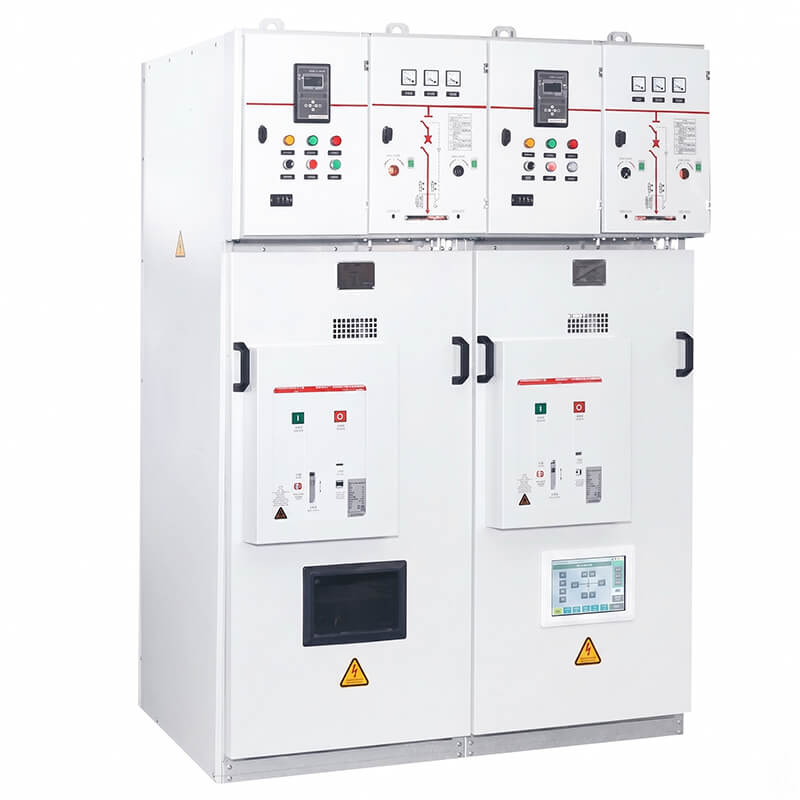

The HXGN-12 (F·R) is an advanced air-insulated fixed ring main unit tailored for 12kV indoor distribution networks. Integrating a high-performance load break switch with a fuse, this switchgear is specifically engineered for the protection of oil-immersed transformers. By utilizing air insulation and eliminating the need for SF6 gas, the HXGN-12 drastically reduces environmental impact and lowers overall lifecycle costs while ensuring continuous grid safety.
Manufactured under strict quality control, this unit complies with IEC 62271-200 and GB 3906 standards. Below is the standard datasheet for bulk procurement:
Parameter | Specification Details |
Rated Voltage | 12 kV |
Rated Current (Load Switch) | 630 A |
Fuse Rated Current | Up to 125 A |
Rated Short-Circuit Breaking Current | 31.5 kA (Fuse Protection) |
Rated Short-Time Withstand Current | 20 kA (3s) |
Insulation Medium | Air-Insulated (No SF6 gas) |
Protection Class | IP3X |
International Standards | IEC 62271-200, GB 3906 |
Designed for versatile indoor installations, the HXGN-12 RMU is an essential component for secondary substations and box-type substations. Its robust switch-fuse combination ensures uninterrupted transformer protection across various sectors:
Industrial Distribution: Heavy manufacturing facilities and industrial parks.
Commercial Distribution: Large shopping centers, office complexes, and data centers.
Residential Distribution: Urban infrastructure and residential power grids requiring high safety standards.
We supply standardized and OEM/ODM customized HXGN-12 air-insulated RMUs directly from our manufacturing facility. Wholesalers, EPC contractors, and global power integrators are welcome to submit project specifications. Contact us today to receive an accurate factory quotation, minimum order quantity (MOQ) details, and full technical datasheets.
