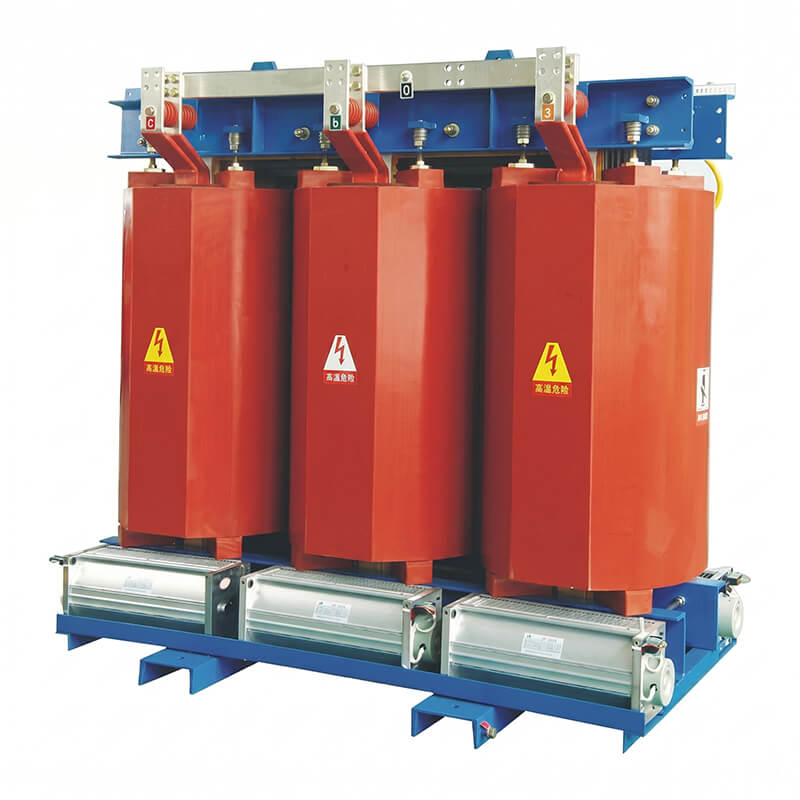

SCB13 series 200kVA 10kV to 0.4kV cast resin dry type distribution transformer with epoxy resin coils

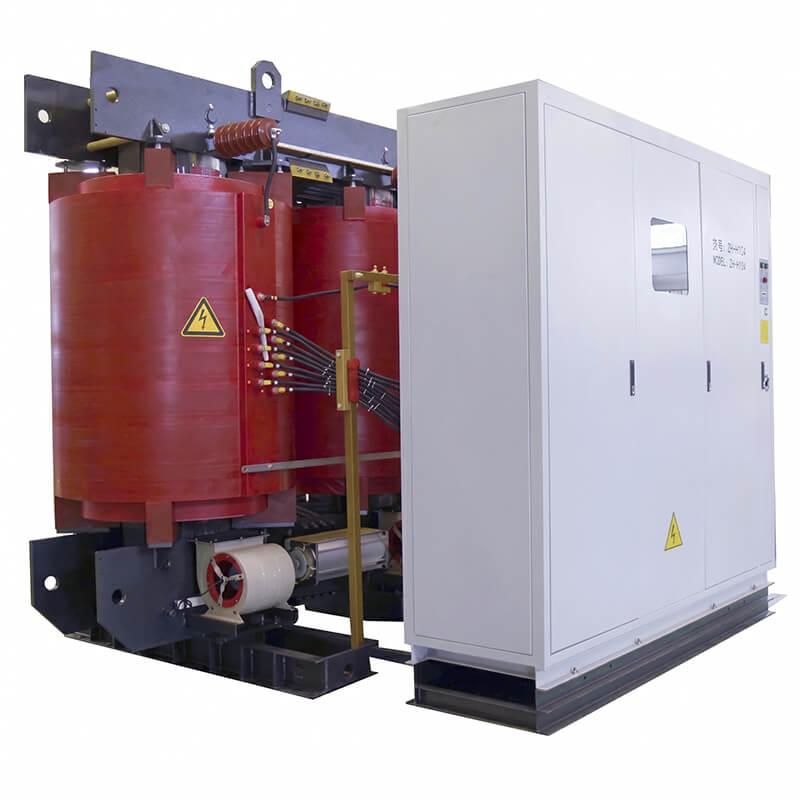

Indoor 200kVA 10kV dry type distribution transformer equipped with metal protective enclosure

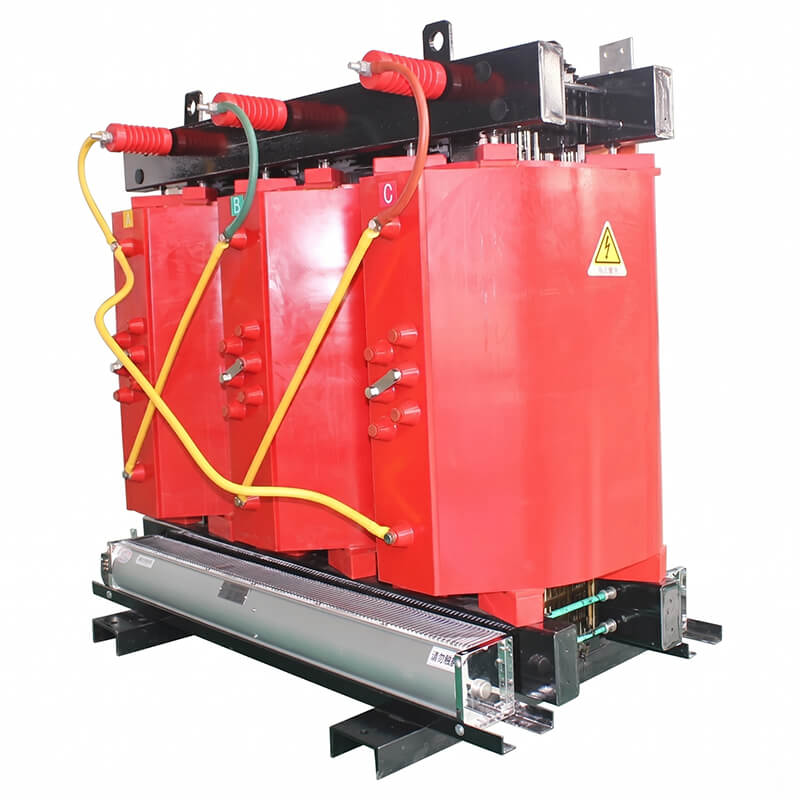

High voltage and low voltage connection terminals of the 200kVA 10kV/0.4kV cast resin transformer

SCB13-200/10-0.4 Cast Resin Dry Type Distribution Transformer (200kVA, 10/0.4kV)

The SCB13-200/10-0.4 is a 3-phase cast resin dry type distribution transformer rated at 200kVA, efficiently stepping down voltage from 10kV to 400V (0.4kV). Engineered with advanced epoxy resin cast coils, this unit guarantees excellent fire safety, low noise, and completely maintenance-free operation. As a direct China manufacturer, we ensure strict compliance with IEC 60076 standards and the GB 20052-2024 Tier 3 energy efficiency classification. Contact us for wholesale factory pricing and complete technical support.

Quantity:
Availability:





Inquire Add to Basket

Product Description

The SCB13 series 200kVA dry type transformer is specifically engineered for safe and highly reliable indoor power distribution. Featuring a robust 3-phase design with epoxy resin cast coils, this transformer delivers outstanding fire resistance while operating with minimal noise. Its maintenance-free architecture significantly lowers the total cost of ownership for long-term projects. The unit expertly converts a 10kV primary voltage to a stable 400V (0.4kV) secondary voltage, ensuring consistent power delivery for industrial and commercial operations.

Technical Specifications & Parameters

Manufactured to meet the most stringent international standards, including IEC 60076 and GB 20052-2024 Tier 3, this SCB13 series transformer offers superior energy efficiency. Below is the core datasheet for bulk procurement evaluation:

Parameter	Specification Details
Rated Capacity	200 kVA
Primary Voltage	10 kV
Secondary Voltage	400V (0.4kV)
No-load Loss	445 W
Load Loss	2270 W
No-load Current	1.1%
Impedance	4%
Connection Group	Dyn11
Insulation Class	Class F
Cooling Method	AN (Air Natural)

Primary Applications

Thanks to its fire-safe and low-noise properties, the SCB13-200/10-0.4 transformer is the ideal power distribution solution for demanding indoor environments. Key applications include:

Small factories and manufacturing facilities.
Commercial buildings and shopping complexes.
Indoor substations requiring stringent fire safety and compact layouts.

Request Wholesale Pricing

As a premier China transformer manufacturer, we supply high-efficiency cast resin dry type transformers to EPC contractors, electrical wholesalers, and global utility integrators. Please contact our engineering team with your project requirements to receive an accurate factory quotation, minimum order quantity (MOQ) details, and comprehensive technical datasheets.
