1600kVA 10/0.4kV 3-Phase Oil Immersed Distribution Transformer - Fully Sealed

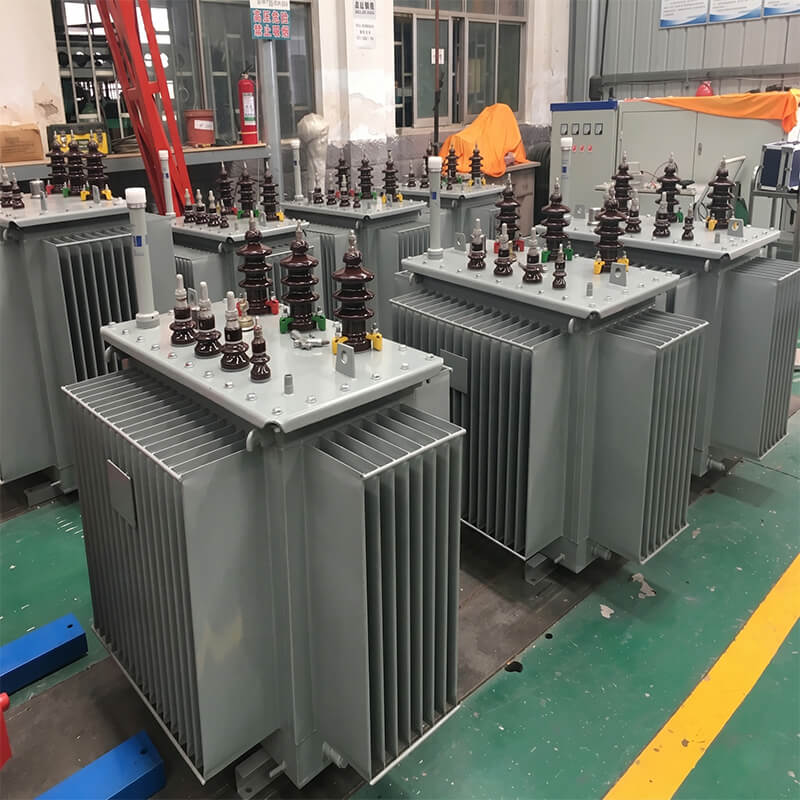

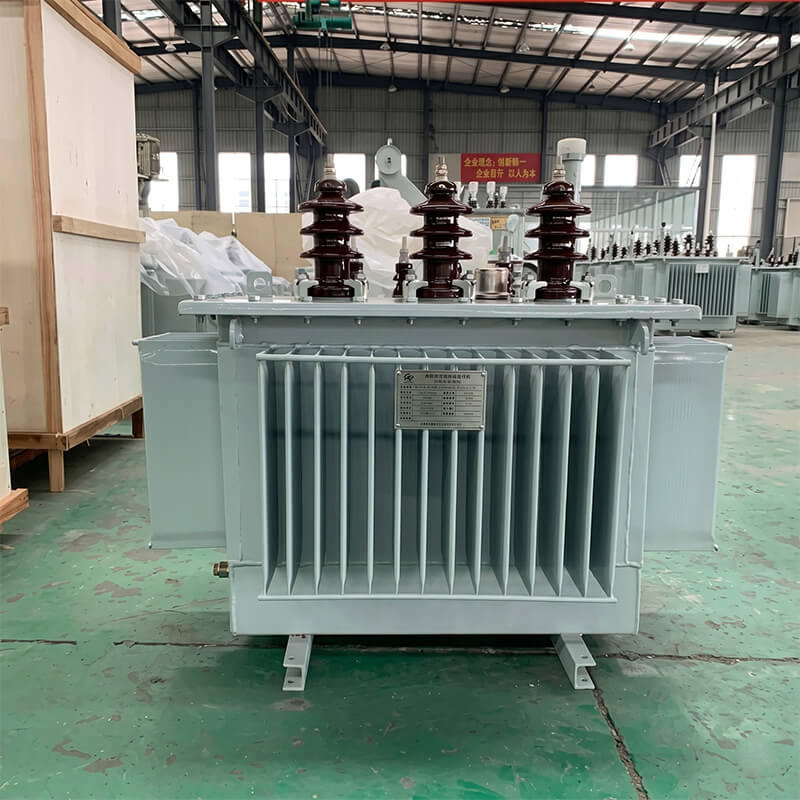

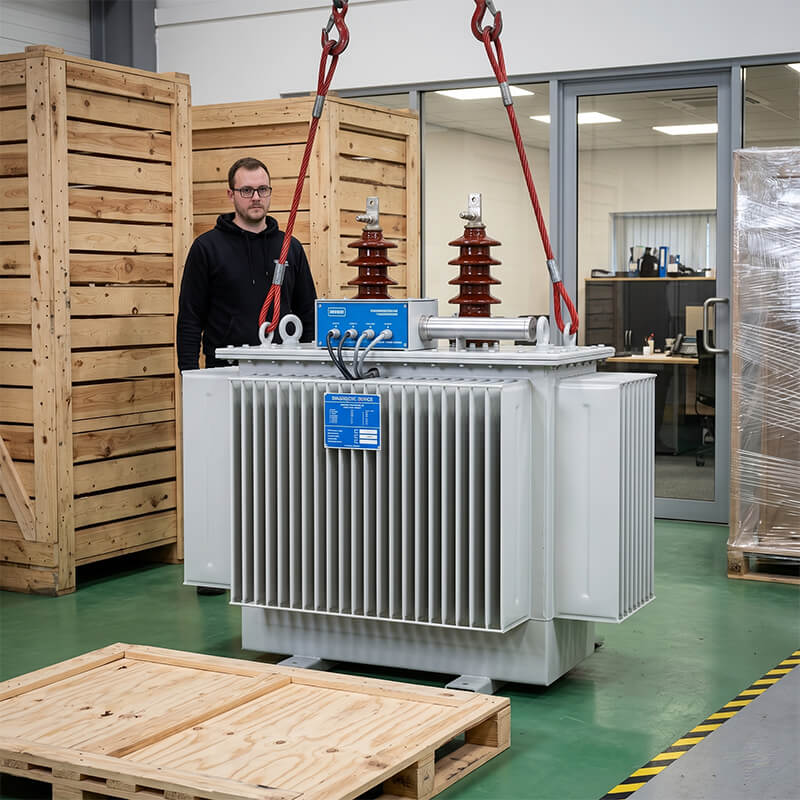

The S11-M-1600/10-0.4 is a highly efficient 1600kVA 10/0.4kV 3-phase oil immersed distribution transformer. Engineered for reliability, it utilizes a fully sealed, corrugated tank design that eliminates the need for an oil conservator, reducing maintenance requirements and isolating the oil from moisture and oxygen.

Core Specifications & Engineering

Designed for optimal electrical performance, this transformer operates at a frequency of 50/60 Hz with connection options of Dyn11 / Yyn0. It strictly adheres to IEC 60076 standards.

* Winding & Core: Built with premium copper windings and a CRGO (Cold Rolled Grain Oriented) core for superior conductivity and minimized energy loss.

* Loss Parameters: Demonstrates excellent efficiency with a no-load loss of ≤ 1640 W and a load loss of ≤ 15300 W (S11 series).

* Impedance & Current: Features an impedance of 4.5% and a no-load current of ≤ 0.3%.

* Cooling System: Utilizes ONAN (Oil Natural Air Natural) cooling methodology.

Industrial Applications

This robust 1600kVA S11-M transformer is specifically engineered for demanding environments, including:

* Heavy industry facilities

* Utility substations

* Large hospitals

* District cooling systems

Customization & Optional Accessories

As a direct manufacturer, we support extensive customization for bulk orders. Standard optional accessories include:

* Oil level gauge and thermometer

* Protective enclosure and casters

* High and low voltage bushings

Contact our engineering team today with your datasheet to receive a precise quote and lead time for bulk manufacturing.

FAQ

Q1: What are the primary applications of the 1600kVA S11-M transformer?

The 1600kVA S11-M transformer is designed for heavy industry, utility substations, large hospitals, and district cooling systems. Its fully sealed, robust construction makes it ideal for demanding environments requiring stable 10/0.4kV power distribution.

Q2: 1600kVA S11-M No-load vs Load Loss Parameters

Q3: How to specify requirements for a custom 1600kVA transformer order?

1. Define Core Ratings: Confirm rated capacity (1600kVA) and voltage (10kV/400V).

2. Specify Materials: Request copper windings and CRGO core for maximum efficiency.

3. Select Accessories: Choose optional add-ons like oil level gauges, thermometers, enclosures, or casters based on site requirements.
