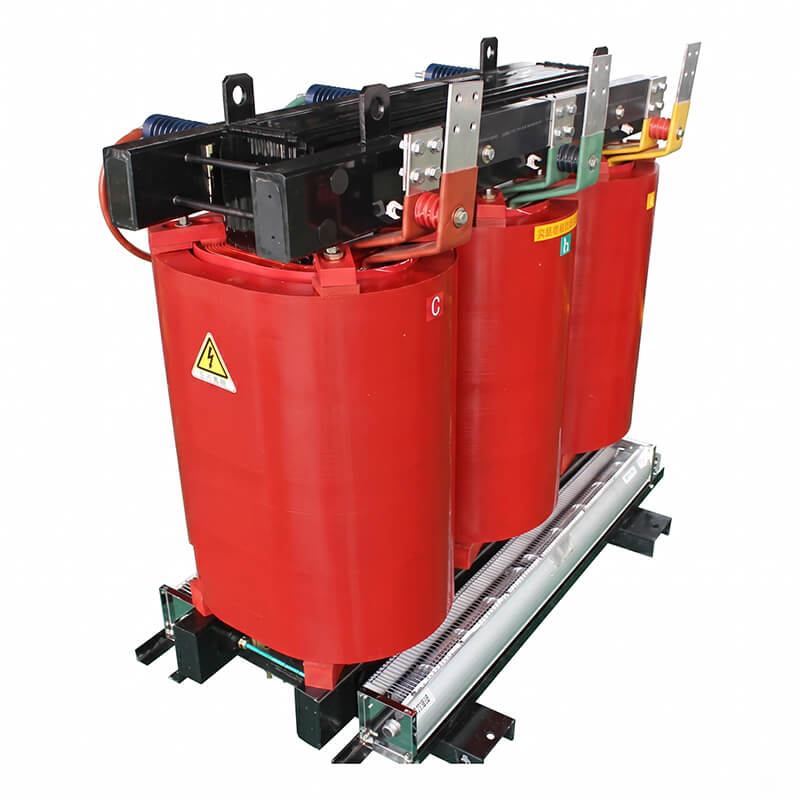

Front view of 630kVA 10kV to 0.4kV SCB13 cast resin dry type distribution transformer

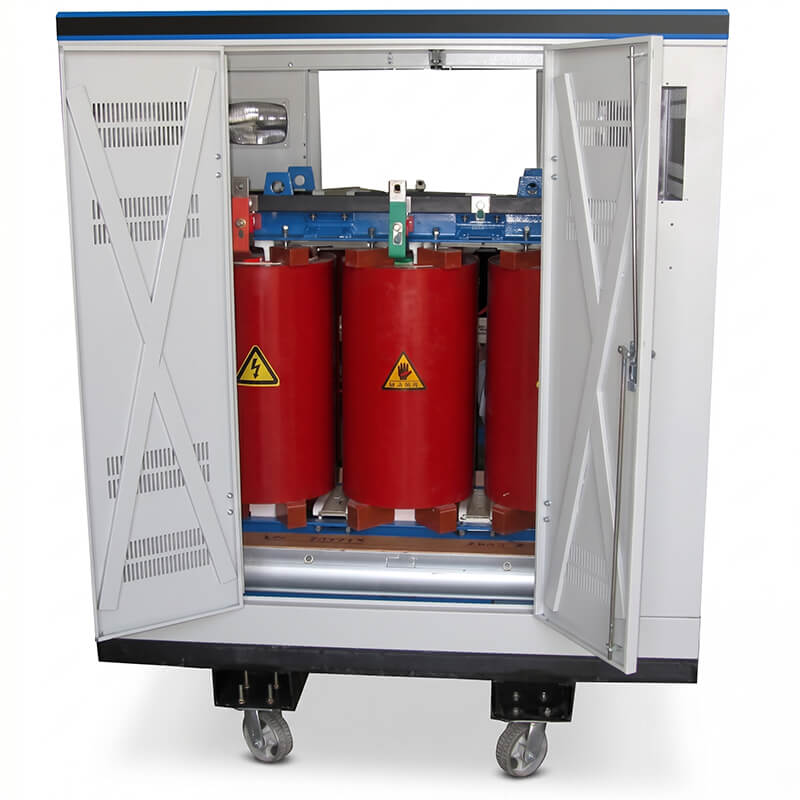

Indoor 630kVA cast resin dry type transformer enclosed in protective metal cabinet with open doors

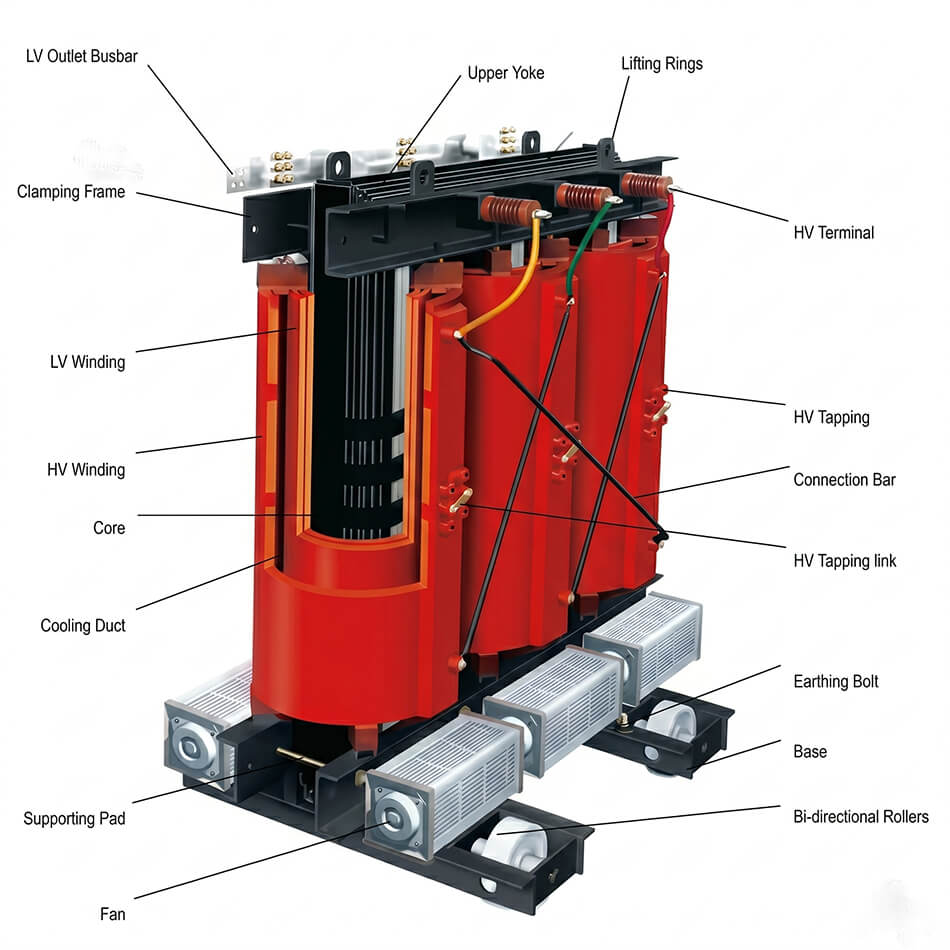

Internal structure diagram of 630kVA cast resin dry type transformer showing vacuum cast epoxy resin winding

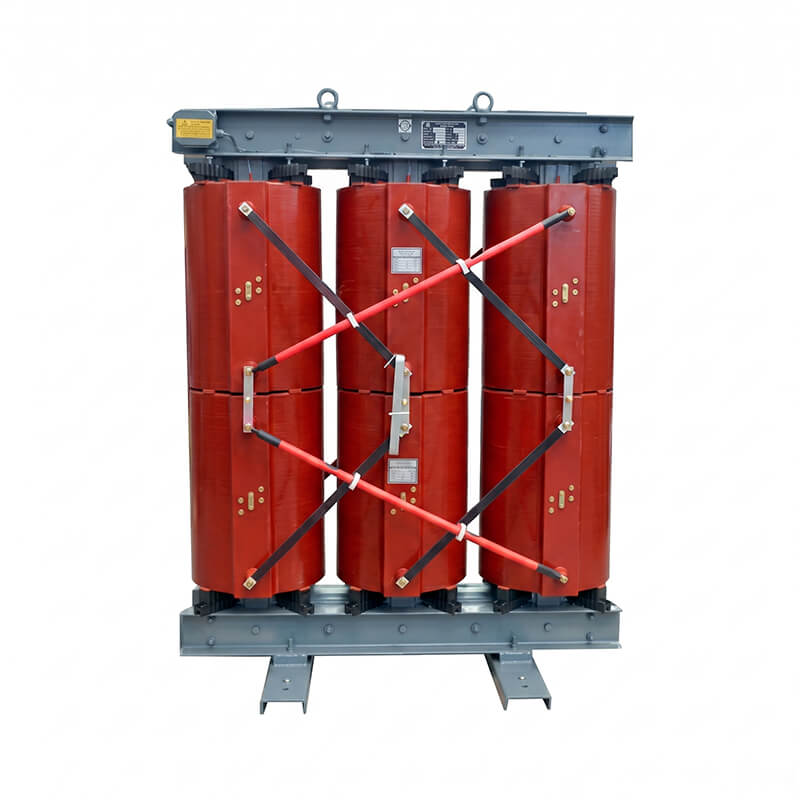

Back view of 630kVA cast resin dry type transformer showing bottom structure and wiring configuration

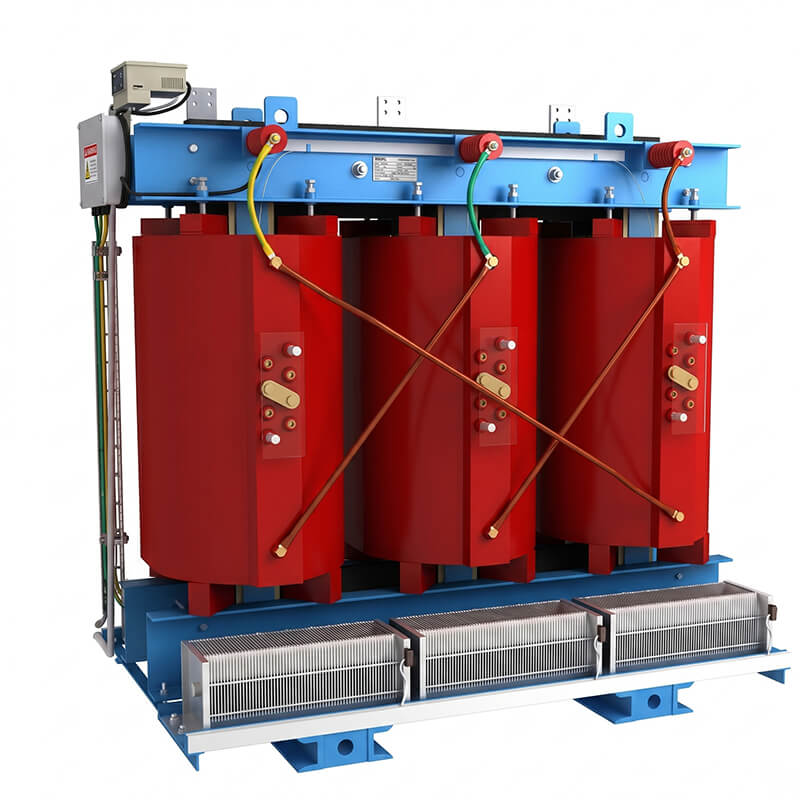

Close-up of fire-resistant red epoxy resin coils on 630kVA cast resin dry type transformer

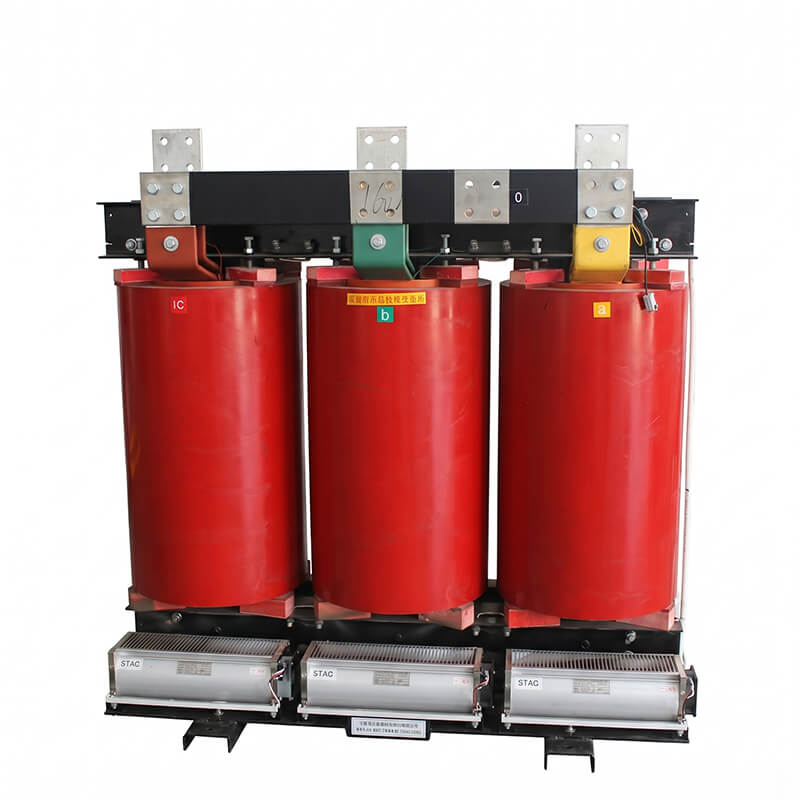

10kV to 0.4kV cast resin dry type transformer with robust mechanical frame for industrial applications

SCB13-630/10-0.4 Cast Resin Dry Type Distribution Transformer (630kVA, 10/0.4kV)

The SCB13-630/10-0.4 is a premium 3-phase cast resin dry type distribution transformer rated at 630kVA. It efficiently steps down voltage from a primary 10kV to a secondary 400V (0.4kV). Engineered with a vacuum cast epoxy resin winding, this unit guarantees exceptional fire safety, moisture resistance, and completely maintenance-free operation. As a direct China manufacturer, we ensure strict compliance with IEC 60076 and GB 20052-2024 Tier 3 standards. Contact us for wholesale factory pricing and bulk procurement solutions.

Quantity:
Availability:





Inquire Add to Basket

Product Description

The SCB13 series 630kVA dry type transformer is expertly engineered for high-capacity, safe power distribution. By utilizing a highly durable vacuum cast epoxy resin winding, this 3-phase unit delivers outstanding fire safety and moisture resistance, making it highly reliable in demanding environments. Its maintenance-free architecture significantly reduces long-term operational costs. The transformer reliably converts a 10kV primary voltage to a stable 400V secondary voltage, ensuring safe and continuous power delivery.

Technical Specifications & Parameters

Manufactured to meet the most stringent international standards, including IEC 60076 and GB 20052-2024 Tier 3, this transformer offers superior energy efficiency and robust safety. Below is the core datasheet for bulk procurement evaluation:

Parameter	Specification Details
Rated Capacity	630 kVA
Primary Voltage	10 kV
Secondary Voltage	400V (0.4kV)
No-load Loss	965 W
Load Loss	5290 W
No-load Current	0.85%
Impedance	4%
Connection Group	Dyn11
Insulation Class	Class F
Cooling Method	AN / AF (optional)

Primary Applications

Engineered for large-scale infrastructural power integration, key applications include:

Large commercial buildings.
Industrial parks and heavy manufacturing facilities.
Broad infrastructure projects requiring stable and safe power networks.
