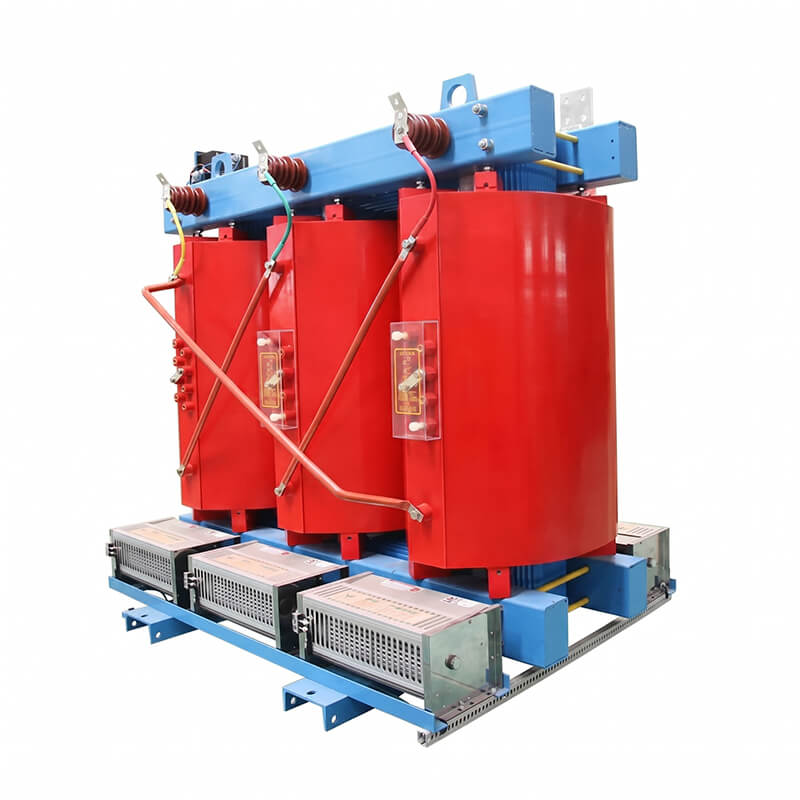

The SCB13 series 315kVA dry type transformer is specifically engineered for safe and highly reliable power distribution. Featuring a robust 3-phase design with epoxy resin casting, this transformer delivers outstanding fire resistance while ensuring stable operation. Its zero-maintenance architecture significantly lowers the total cost of ownership for long-term infrastructural projects. The unit reliably converts a 10kV primary voltage to a stable 400V secondary voltage, ensuring consistent power delivery for demanding applications.
Manufactured to meet the most stringent international standards, including IEC 60076 and GB 20052-2024 Tier 3, this SCB13 series transformer offers superior energy efficiency and safety. Below is the core datasheet for bulk procurement evaluation:
Parameter | Specification Details |
Rated Capacity | 315 kVA |
Primary Voltage | 10 kV |
Secondary Voltage | 400V (0.4kV) |
No-load Loss | 620 W |
Load Loss | 3200 W |
No-load Current | 1.0% |
Impedance | 4% |
Connection Group | Dyn11 |
Insulation Class | Class F |
Cooling Method | AN (Air Natural) |
Thanks to its exceptional fire safety and stability, the SCB13-315/10-0.4 transformer is the ideal power distribution solution for densely populated and specialized environments. Key applications include:
Residential complexes requiring high-safety power integration.
Schools and educational institutions.
Hospitals and medical facilities demanding uninterrupted, stable operation.
Light industrial plants and manufacturing facilities.
As a premier China transformer manufacturer, we supply high-efficiency cast resin dry type transformers to EPC contractors, electrical wholesalers, and global utility integrators. Please contact our engineering team with your project requirements to receive an accurate factory quotation, minimum order quantity (MOQ) details, and comprehensive technical datasheets.
