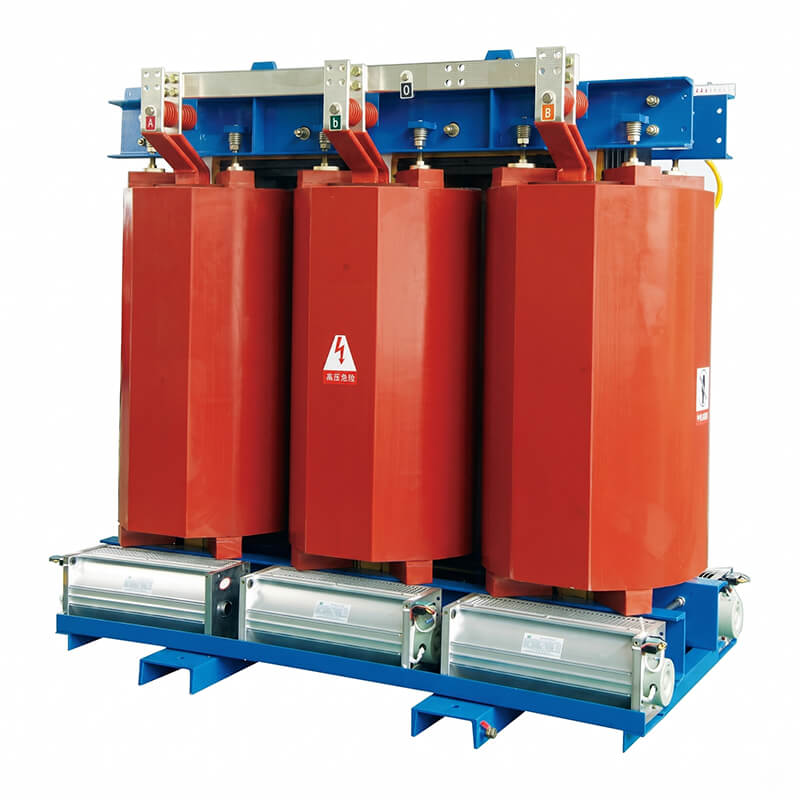

Front view of SCB13 series 1000kVA 10kV to 0.4kV cast resin dry type distribution transformer

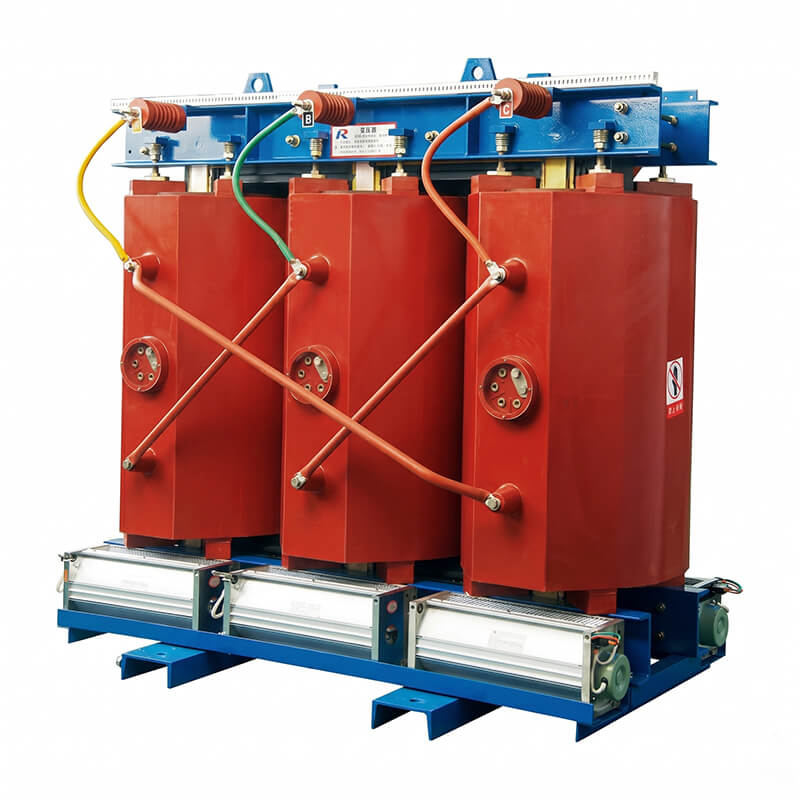

Rear connection copper busbars of 1000kVA cast resin dry type power transformer

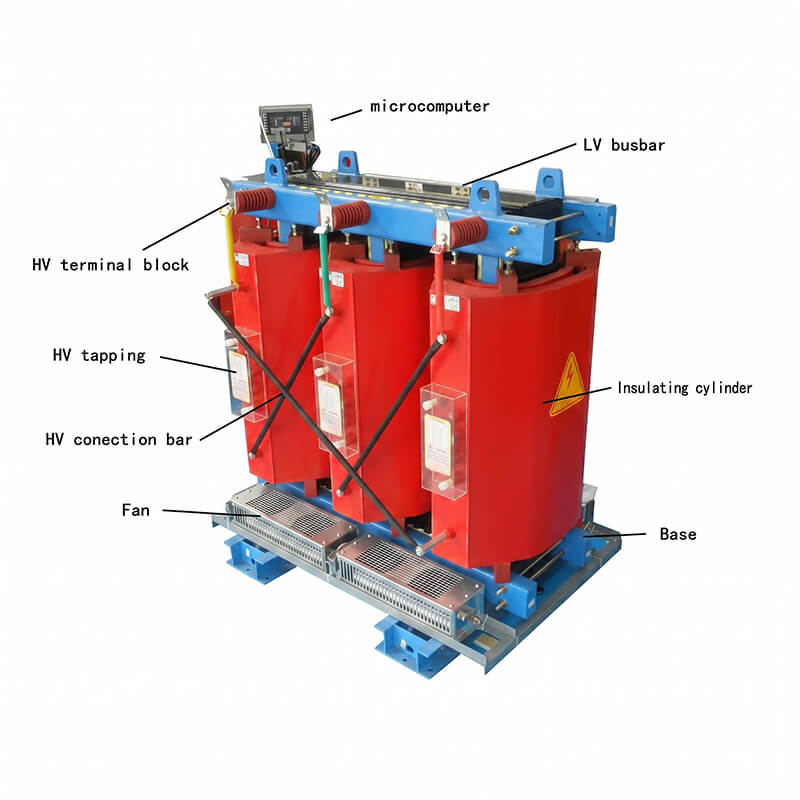

Internal components and structural diagram of 1000kVA cast resin dry type transformer

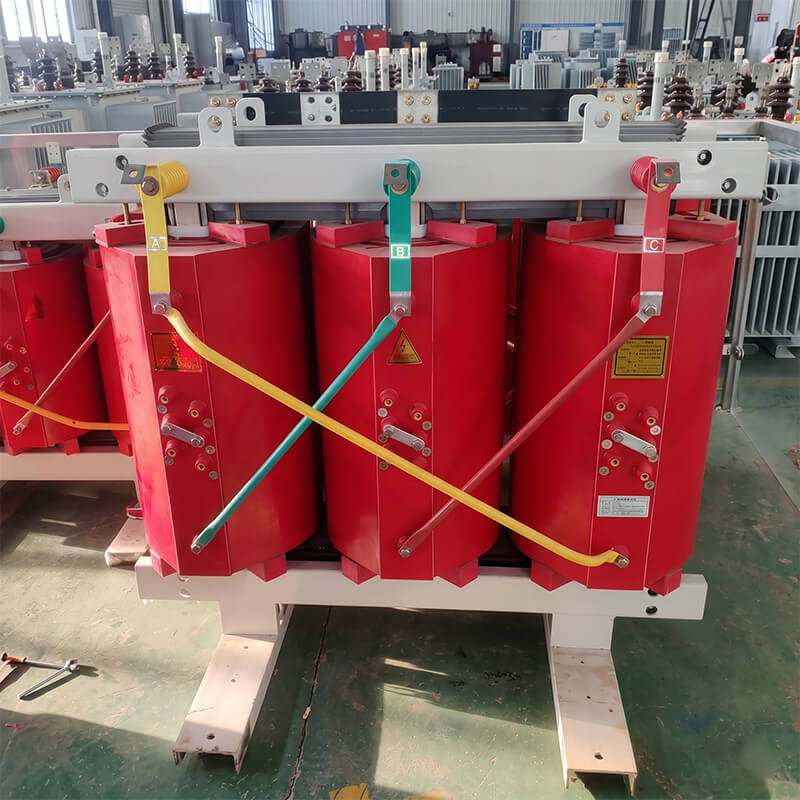

Finished 1000kVA cast resin dry type transformer on wooden pallet ready for export shipping

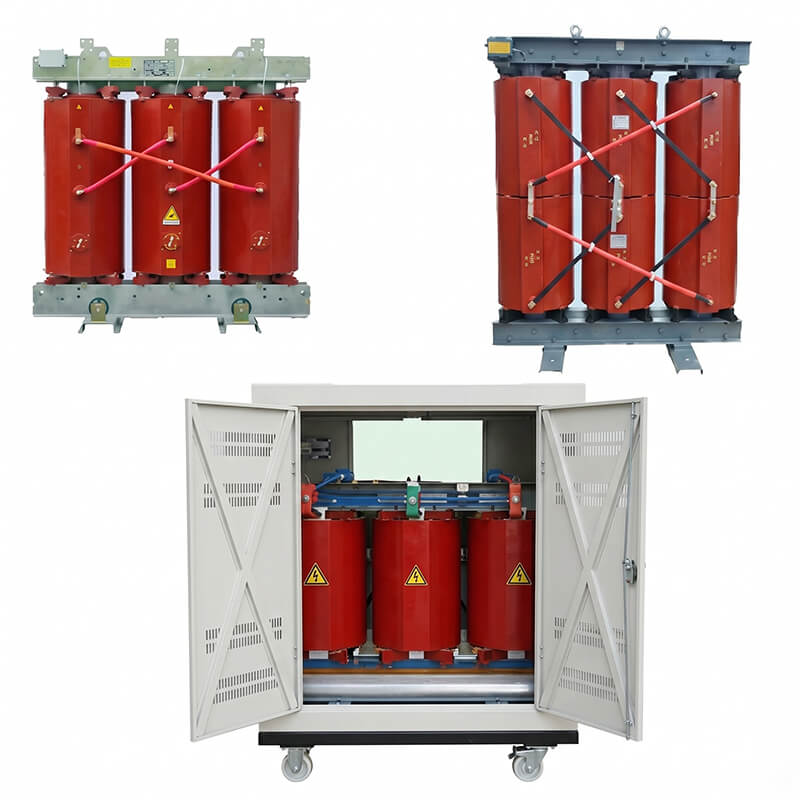

Multiple views of 1000kVA cast resin dry type transformer including protective metal enclosure configuration

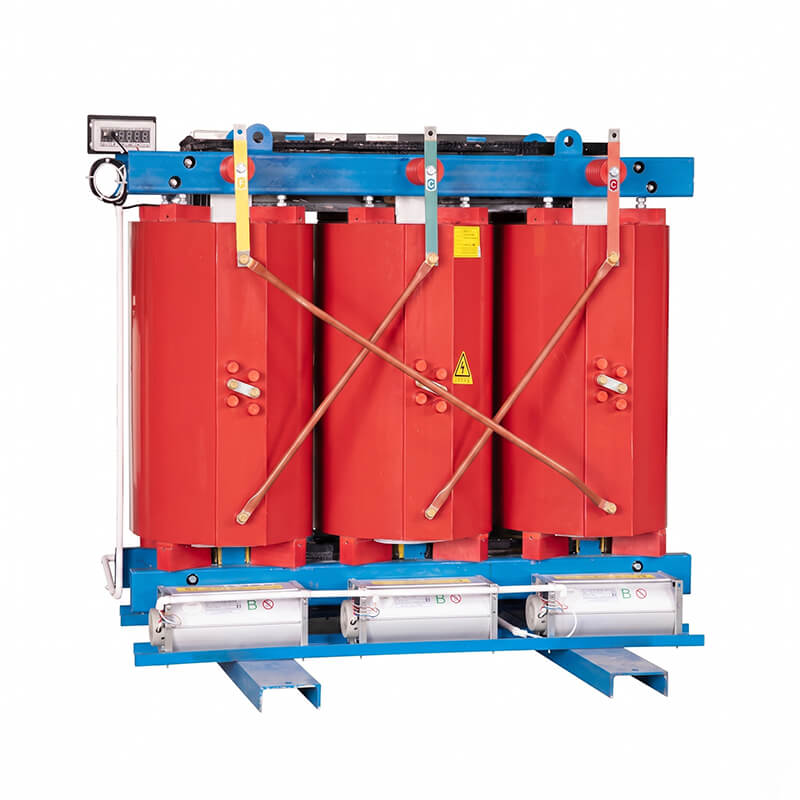

1000kVA 10kV to 0.4kV cast resin dry type transformer equipped with intelligent temperature controller

SCB13-1000/10-0.4 Cast Resin Dry Type Distribution Transformer (1000kVA, 10/0.4kV)

The SCB13-1000/10-0.4 is a premium 3-phase cast resin dry type distribution transformer rated at 1000kVA. It efficiently steps down voltage from a primary 10kV to a secondary 400V (0.4kV). Engineered with high-strength epoxy resin casting, this unit guarantees excellent flame retardant properties, is self-extinguishing, and operates completely maintenance-free. As a direct China manufacturer, we ensure strict compliance with IEC 60076 and GB 20052-2024 Tier 3 standards. Contact us for wholesale factory pricing and bulk procurement solutions.

Quantity:
Availability:





Inquire Add to Basket

Product Description

The SCB13 series 1000kVA dry type transformer is expertly engineered for high-capacity, safe power distribution. By utilizing a highly durable high-strength epoxy resin casting, this 3-phase unit delivers outstanding flame retardant and self-extinguishing capabilities. Its completely maintenance-free architecture significantly reduces long-term operational costs. The transformer reliably converts a 10kV primary voltage to a stable 400V secondary voltage, ensuring safe and continuous power delivery for demanding B2B applications.

Technical Specifications & Parameters

Manufactured to meet the most stringent international standards, including IEC 60076 and GB 20052-2024 Tier 3, this transformer offers superior energy efficiency and robust safety. Below is the core datasheet for bulk procurement evaluation:

Parameter	Specification Details
Rated Capacity	1000 kVA
Primary Voltage	10 kV
Secondary Voltage	400V (0.4kV)
No-load Loss	1270 W
Load Loss	7310 W
No-load Current	0.85%
Impedance	6%
Connection Group	Dyn11
Insulation Class	Class F
Cooling Method	AN / AF

Primary Applications

Engineered for large-scale infrastructural power integration, this unit's safety and high capacity make it an ideal solution for critical sectors. Key applications include:

Large data centers.
High-rise buildings.
Utility substations.

Request Wholesale Pricing

As a premier China transformer manufacturer, we supply high-efficiency cast resin dry type transformers to EPC contractors, electrical wholesalers, and global utility integrators. Please contact our engineering team with your project requirements to receive an accurate factory quotation, minimum order quantity (MOQ) details, and comprehensive technical datasheets.
