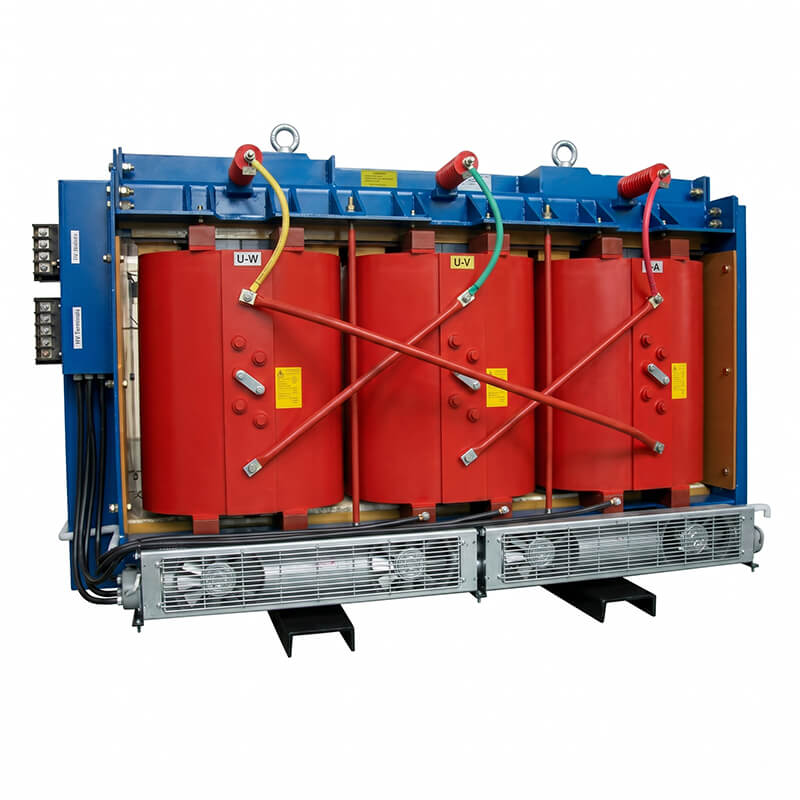

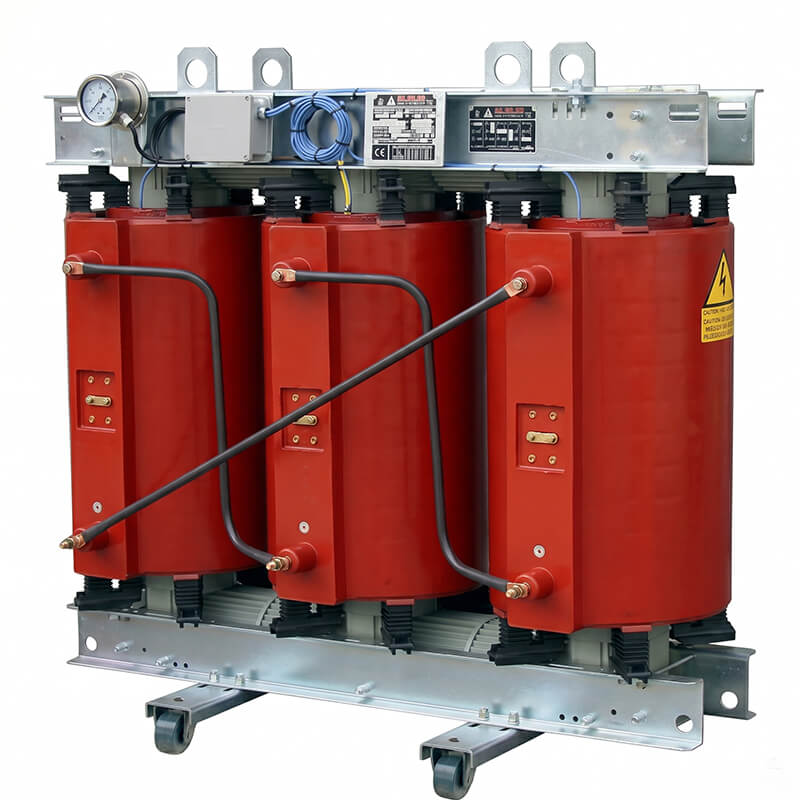

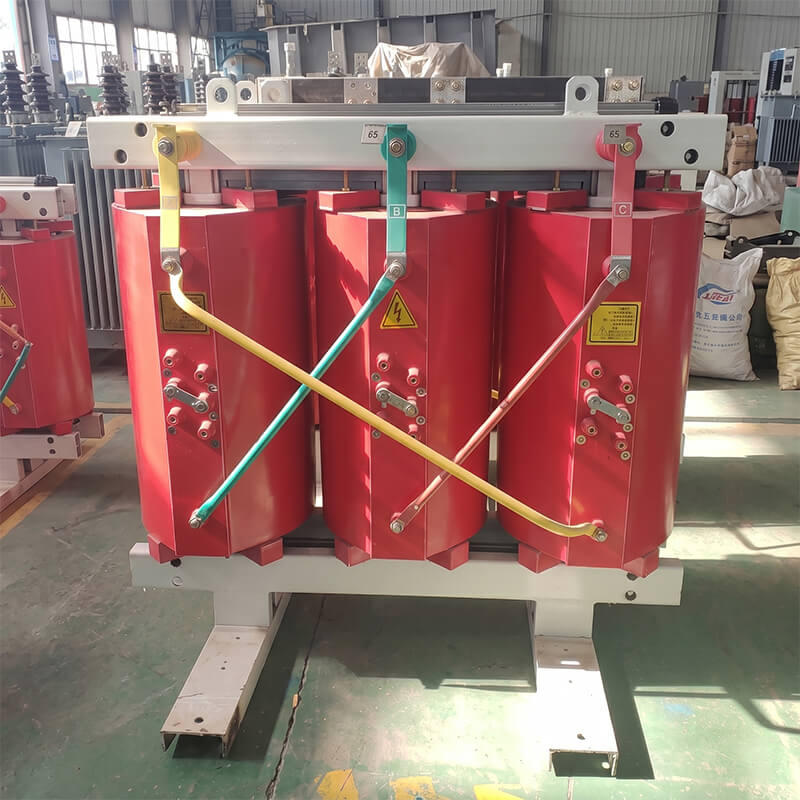

The SCB13 series 500kVA dry type transformer is specifically engineered for high-demand indoor power distribution. Utilizing advanced epoxy resin cast coils, this 3-phase unit delivers exceptional mechanical strength and superior short-circuit withstand capability. Its silent operation makes it highly suitable for noise-sensitive indoor environments. The transformer reliably converts a 10kV primary voltage to a stable 400V secondary voltage, ensuring consistent and safe power delivery.
Manufactured to meet the most stringent international standards, including IEC 60076 and GB 20052-2024 Tier 3, this transformer offers superior energy efficiency and robust safety. Below is the core datasheet for bulk procurement evaluation:
Parameter | Specification Details |
Rated Capacity | 500 kVA |
Primary Voltage | 10 kV |
Secondary Voltage | 400V (0.4kV) |
No-load Loss | 835 W |
Load Loss | 4390 W |
No-load Current | 1.0% |
Impedance | 4% |
Connection Group | Dyn11 |
Insulation Class | Class F |
Cooling Method | AN (Air Natural) |
Thanks to its stable performance, robust mechanical design, and silent operation, the SCB13-500/10-0.4 transformer is the ideal power distribution solution for mid-to-large-scale infrastructural setups. Key applications include:
Shopping centers and large retail complexes.
Mid-size factories and industrial manufacturing facilities.
Data centers requiring uninterrupted, stable, and safe power supply.
As a premier China transformer manufacturer, we supply high-efficiency cast resin dry type transformers to EPC contractors, electrical wholesalers, and global utility integrators. Please contact our engineering team with your project requirements to receive an accurate factory quotation, minimum order quantity (MOQ) details, and comprehensive technical datasheets.
