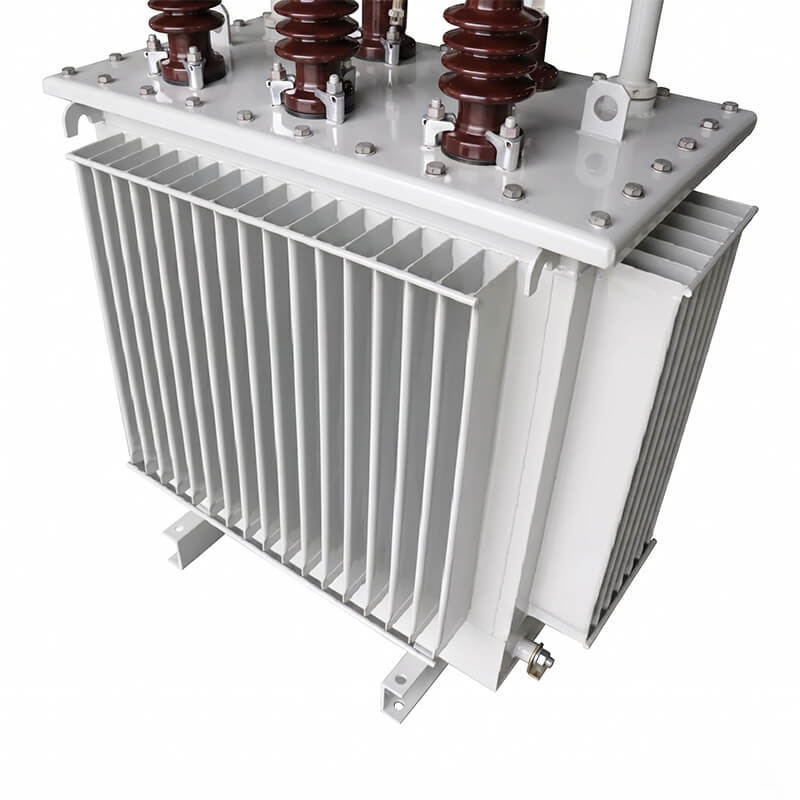

The S11-M series 100kVA oil immersed distribution transformer is expertly designed for highly reliable three-phase 50/60Hz power grids. Featuring a fully sealed corrugated tank construction, this unit isolates the insulating oil from the ambient air, which effectively prevents moisture absorption and oxidation. This advanced design significantly extends the service life and makes the transformer completely maintenance-free. Built with a high-permeability CRGO core and 100% copper windings, it guarantees high efficiency and low energy consumption. The unit seamlessly steps down a 10kV primary voltage to a stable 400V secondary voltage.
Manufactured to meet the most stringent international standards, including IEC 60076 and GB/T 1094, this transformer delivers stable and efficient power. It also comes with an 18-month warranty for guaranteed reliability. Below is the core datasheet for bulk procurement evaluation:
Parameter | Specification Details |
Rated Capacity | 100 kVA |
Primary / Secondary Voltage | 10 kV / 400 V (0.4kV) |
Frequency & Phase | 50/60 Hz, 3-phase |
No-load Loss | ≤ 200 W (S11 level) |
Load Loss | ≤ 1580 W (S11 level) |
Impedance | 4% |
No-load Current | ≤ 1.0% |
Connection Group | Dyn11 / Yyn0 |
Insulation Level | LI 75 / AC 35 |
Cooling Method | ONAN |
Tank & Mounting Type | Corrugated, fully sealed; Pole-mountable |
Thanks to its robust fully sealed construction and pole-mountable design, this 100kVA transformer is an ideal power distribution solution for a variety of infrastructural setups. Key applications include:
Residential areas and communities.
Small factories and manufacturing facilities.
Commercial buildings and complexes.
Rural grid upgrades and extensions.
As a premier China transformer manufacturer, we supply fully certified oil immersed distribution transformers to EPC contractors, electrical wholesalers, and global utility integrators. We also provide a wide range of optional accessories based on your specific project requirements, including oil level gauges, thermometers, enclosures, casters, and specialized bushings. Please contact our engineering team with your project specifications to receive an accurate factory quotation, minimum order quantity (MOQ) details, and comprehensive technical datasheets.
