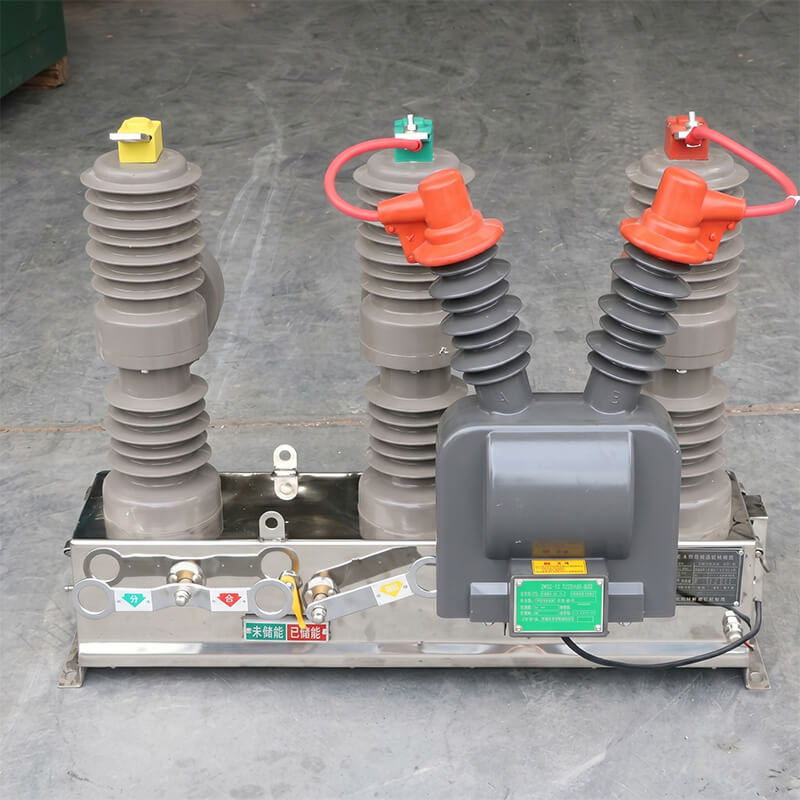

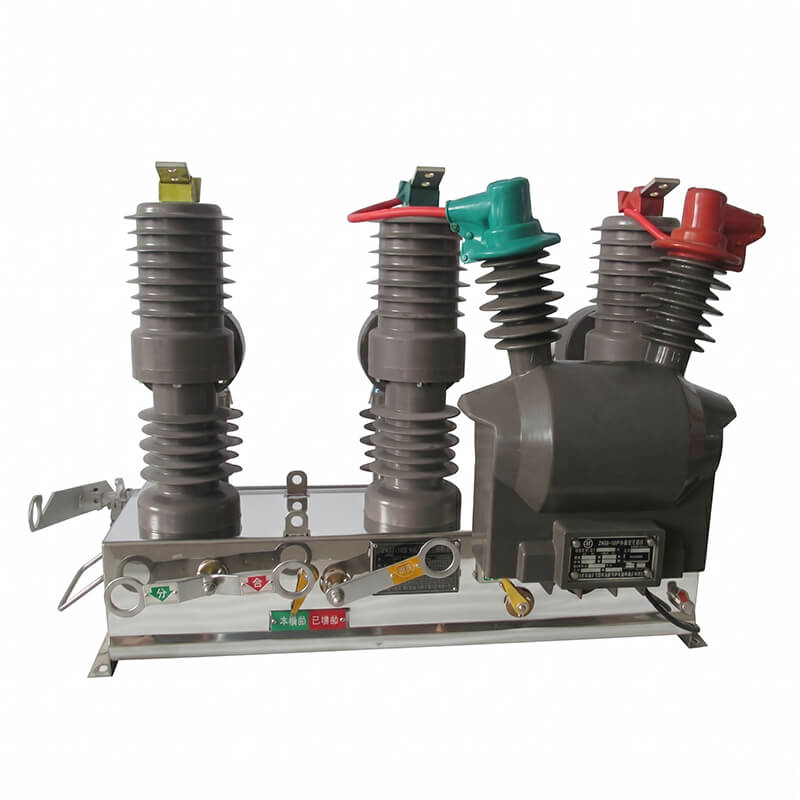

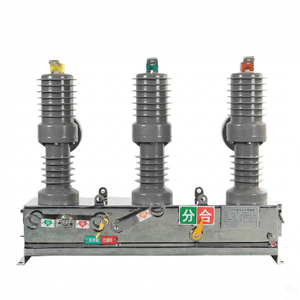

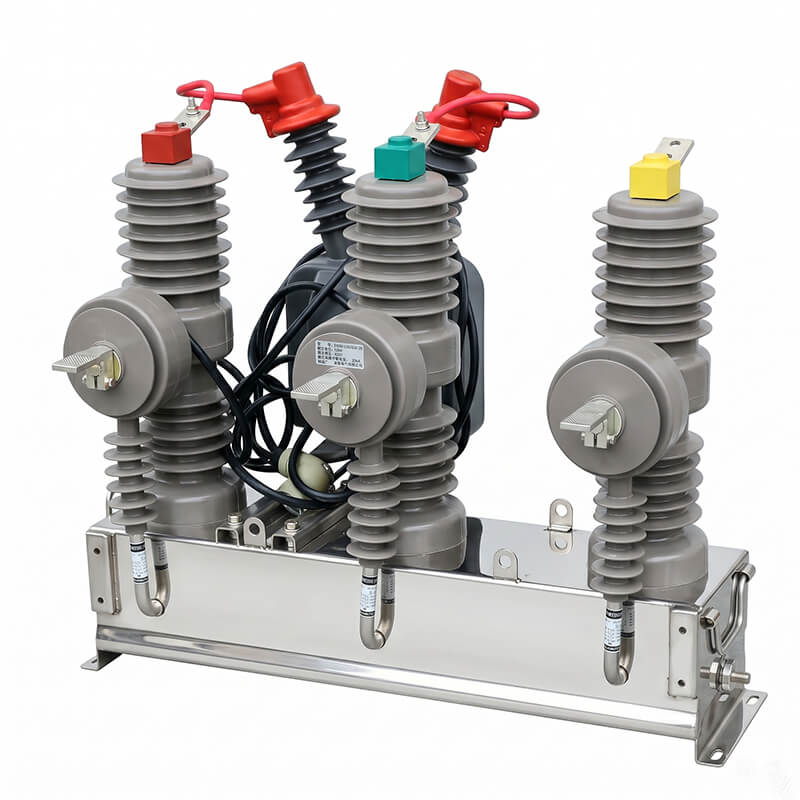

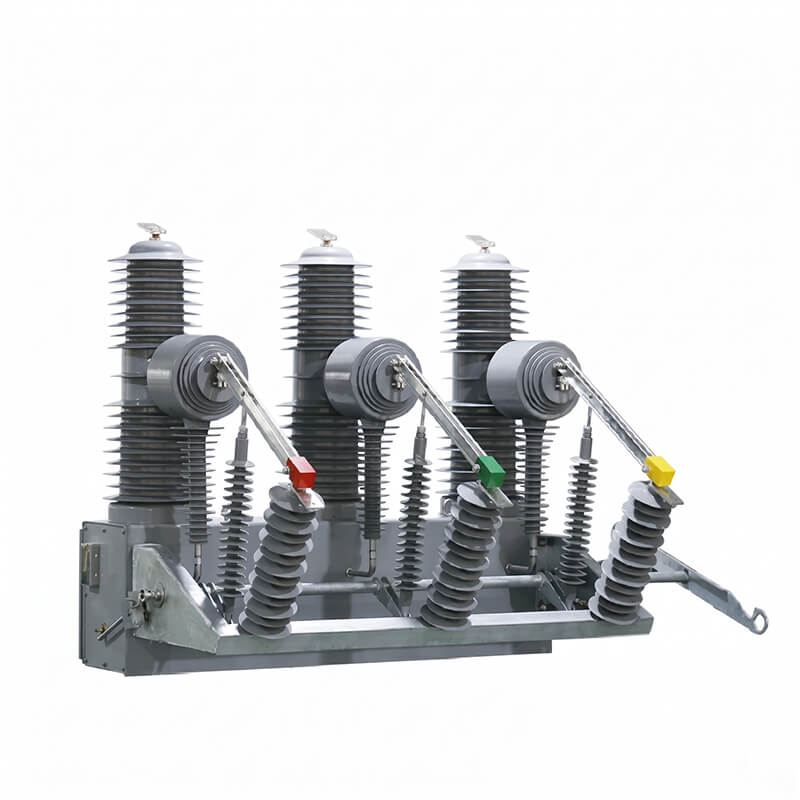

Intelligent ZW32-12FG Outdoor Vacuum Circuit Breaker 12kV

Intelligent ZW32-12FG Outdoor Vacuum Circuit Breaker with Watchdog Controller

The ZW32-12FG is a highly advanced outdoor pole-mounted vacuum circuit breaker equipped with an intelligent watchdog controller. Designed for modern power networks, it automatically isolates single-phase grounding and phase-to-phase short circuit faults at the line boundary, significantly minimizing the outage range. This unit is an essential asset for infrastructure upgrades, offering seamless SCADA remote control and auto-reclosing capabilities for enhanced grid reliability. We are a direct China manufacturer supporting bulk wholesale orders and precise OEM specifications.

Core Applications

This intelligent circuit breaker is ideal for rural grid renovation, urban distribution automation, overhead line protection, and substation feeders. It is heavily deployed in remote monitoring systems where automated fault response is critical to maintaining continuous power delivery.

Key Technical Specifications

• Rated voltage: 12 kV

• Rated current: 630A / 1250A

• Rated short-circuit breaking current: 20kA / 25kA

• Rated short-time withstand current (4s): 20kA / 25kA

• Mechanical life: 10,000 operations

• Controller functions: Three-stage overcurrent protection, auto-reclosing (0-3 times), remote measurement/control (SCADA)

• Operating temperature: -40°C to +45°C

• Installation environment: Altitudes up to 2000m

• Standards compliance: IEC 62271-100, GB/T 1984

Operational Advantages

Engineered for strict environments, the ZW32-12FG operates reliably between -40°C to +45°C and at altitudes up to 2000m. The integrated three-stage overcurrent protection and adjustable 0-3 times auto-reclosing function minimize manual maintenance trips. By sourcing directly from our factory, contractors and wholesale distributors secure stable supply chains, rigorous quality compliance (IEC 62271-100), and competitive bulk pricing.

FAQ

Q1: What is the ZW32-12FG circuit breaker used for?

The ZW32-12FG is designed for rural grid renovation, urban distribution automation, and overhead line protection. It automatically isolates single-phase grounding and phase-to-phase short circuit faults, making it essential for remote substation feeders and automated monitoring systems.

Q2: ZW32-12FG vs Standard VCB

Q3: How does the ZW32-12FG handle power grid faults?

1. The intelligent watchdog controller continuously monitors the line.

2. It detects single-phase grounding or phase-to-phase short circuits.

3. The unit automatically isolates the fault at the specific line boundary.

4. It executes auto-reclosing operations up to 3 times to restore temporary faults.
