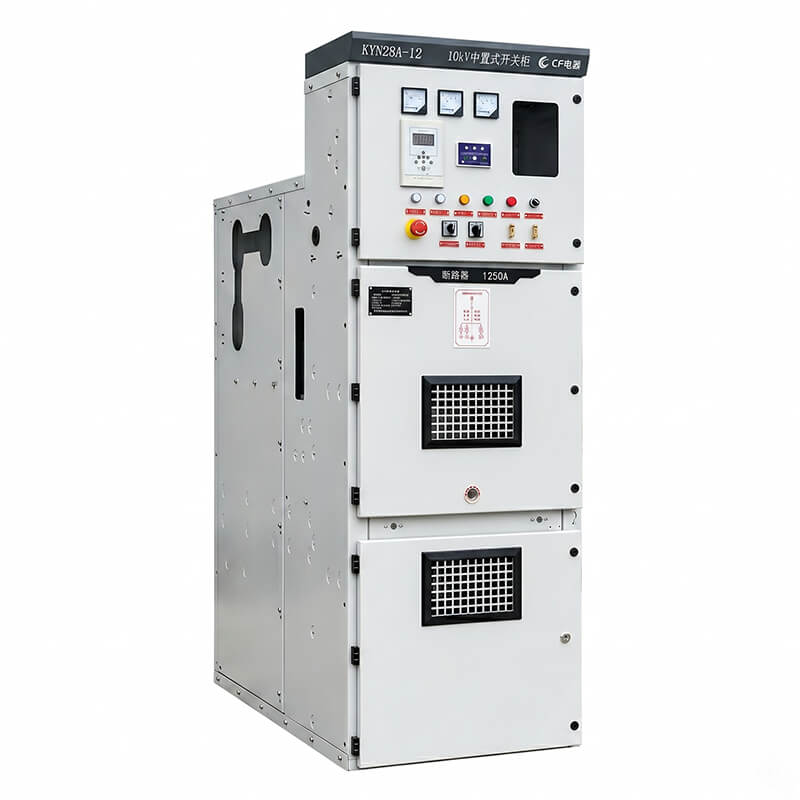

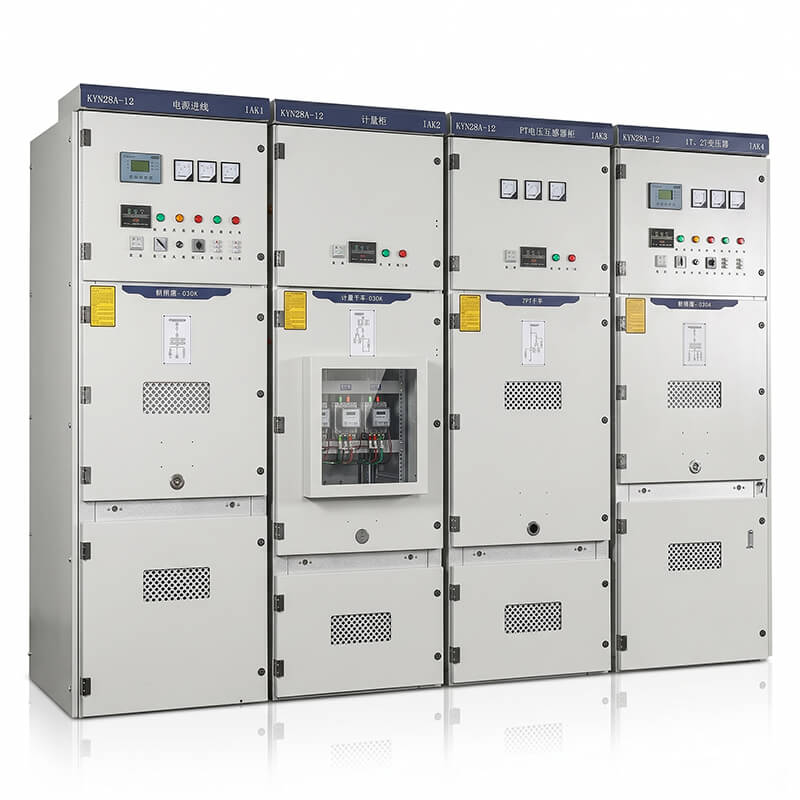

The KYN28-12 is an advanced indoor armored metal-clad switchgear that features a robust withdrawable (handcart) circuit breaker design. Engineered specifically for receiving and distributing 12kV three-phase AC power, this unit delivers exceptional reliability in protection and control operations. To maximize personnel safety and prevent operational errors, the system is fully interlocked for safe operation. The switchgear is structurally divided into distinct compartments—breaker, busbar, cable, and relay—which effectively isolate faults and simplify maintenance routines.

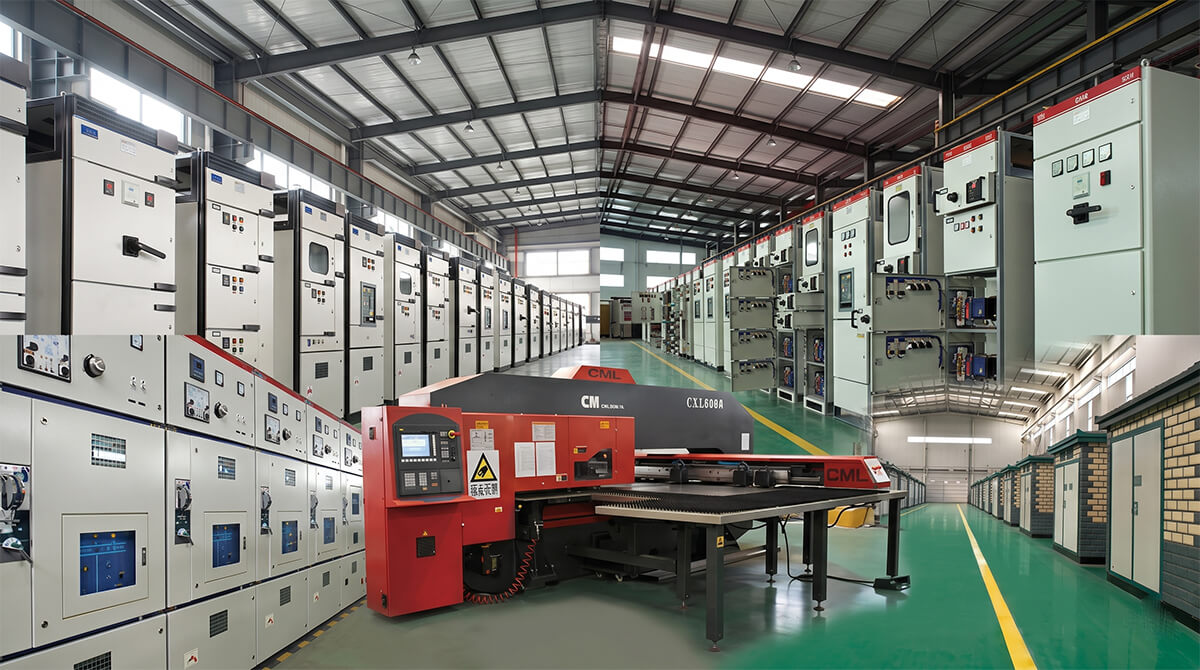

Manufactured under strict quality protocols, the KYN28-12 switchgear is fully compliant with IEC 62271-200 and GB 3906 international standards. Below is the core datasheet for bulk procurement evaluation:
Parameter | Specification Details |
Rated Voltage | 12 kV |
Rated Current | 630A / 1250A / 2000A / 3150A |
Rated Short-Time Withstand Current | 20 / 25 / 31.5 / 40 kA (4s) |

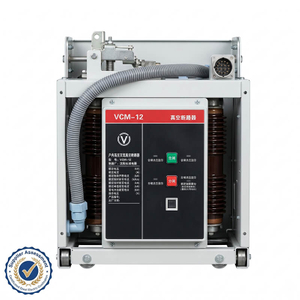

Circuit Breaker Type | VS1-12 withdrawable vacuum circuit breaker |
Internal Compartments | Breaker, busbar, cable, relay |
Protection Class | IP4X (enclosure), IP2X (compartment doors open) |
International Standards | IEC 62271-200, GB 3906 |
Designed strictly for indoor installations, the KYN28-12 provides stable 12kV power distribution across a wide range of high-demand sectors. Its core applications include:
Power plants and electrical substations.
Heavy industrial plants and manufacturing facilities.
Large-scale commercial buildings and data centers.
Urban residential power distribution networks.
As a premier China switchgear manufacturer, we supply both standard and OEM/ODM customized KYN28-12 units to EPC contractors, electrical wholesalers, and global power integrators. Please contact our engineering team with your project's single-line diagram (SLD) or technical requirements to receive a comprehensive factory quotation, MOQ details, and specialized CAD drawings.
