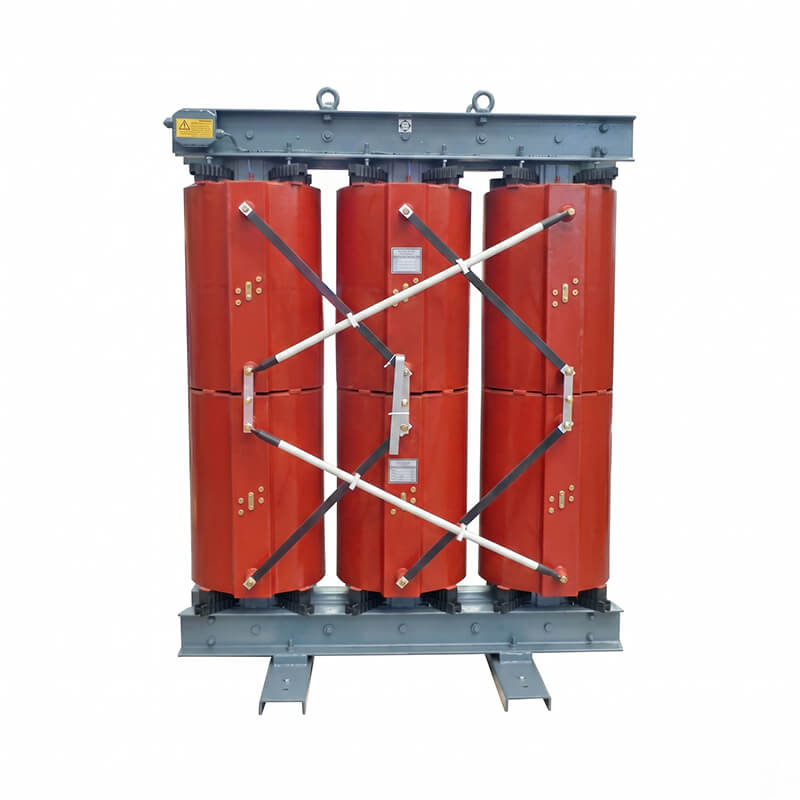

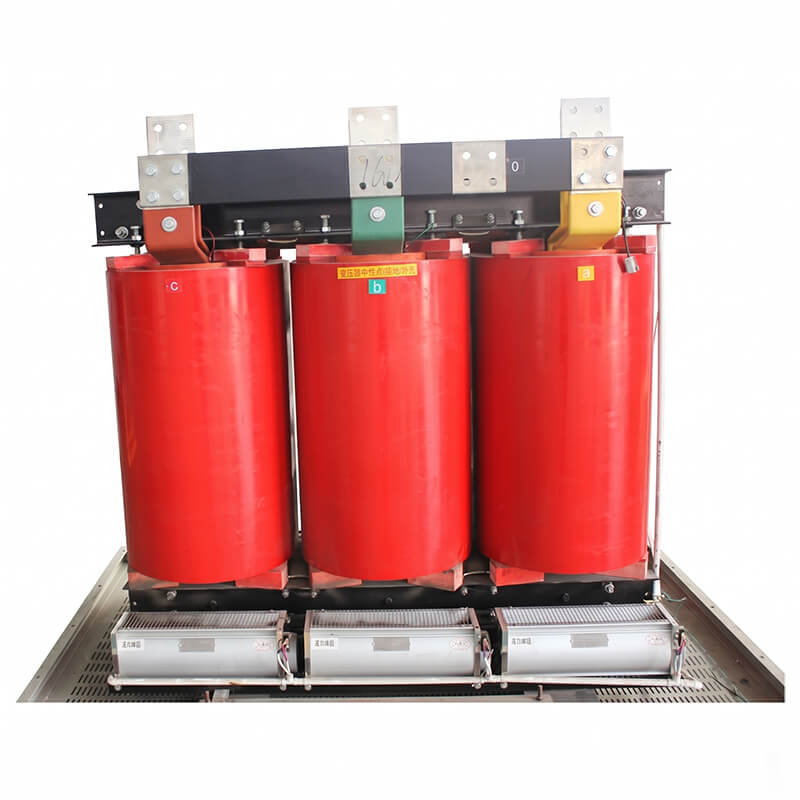

The SCB13 series 800kVA dry type transformer is expertly engineered for high-capacity, safe power distribution. By utilizing highly durable epoxy resin cast coils, this 3-phase unit delivers outstanding fire resistance and operates with low noise, making it highly reliable in demanding and populated environments. Under forced air cooling (AF), it exhibits strong overload capability to handle peak electrical demands seamlessly. The transformer reliably converts a 10kV primary voltage to a stable 400V secondary voltage, ensuring safe and continuous power delivery.
Manufactured to meet the most stringent international standards, including IEC 60076 and GB 20052-2024 Tier 3, this transformer offers superior energy efficiency and robust safety. Below is the core datasheet for bulk procurement evaluation:
Parameter | Specification Details |
Rated Capacity | 800 kVA |
Primary Voltage | 10 kV |
Secondary Voltage | 400V (0.4kV) |
No-load Loss | 1090 W |
Load Loss | 6260 W |
No-load Current | 0.85% |
Impedance | 6% |
Connection Group | Dyn11 |
Insulation Class | Class F |
Cooling Method | AN / AF |
Engineered for large-scale infrastructural power integration, this unit's fire safety and overload capabilities make it an ideal solution for critical sectors. Key applications include:
Hospitals and medical facilities requiring continuous, low-noise power.
Airports and major transportation hubs.
Heavy industrial facilities and manufacturing plants.
As a premier China transformer manufacturer, we supply high-efficiency cast resin dry type transformers to EPC contractors, electrical wholesalers, and global utility integrators. Please contact our engineering team with your project requirements to receive an accurate factory quotation, minimum order quantity (MOQ) details, and comprehensive technical datasheets.
