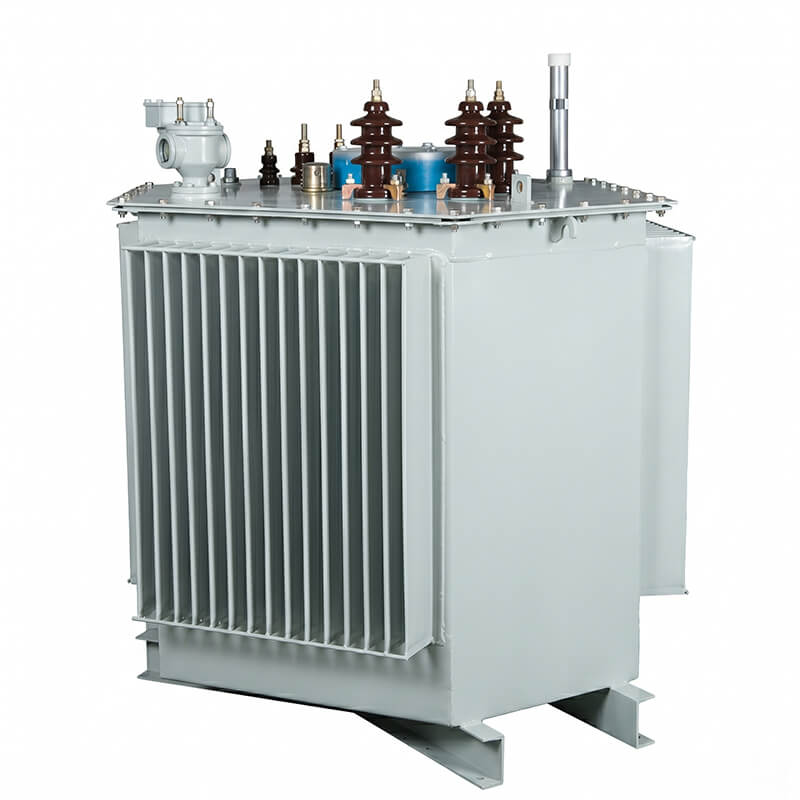

S11-M-630/10-0.4 630kVA 10/0.4kV 3-Phase Fully Sealed Oil Immersed Distribution Transformer

The 630kVA S11-M distribution transformer is optimized for heavy-duty power distribution in harsh environments. Utilizing a fully sealed structural design, the cooling oil is completely isolated from the atmosphere, eliminating moisture absorption and significantly extending the equipment's lifespan. Supported by a high-efficiency CRGO core and ONAN cooling system, this transformer delivers continuous, low-loss power stability for large-scale operations.

Key Features

• Copper Winding Construction: Built with high-conductivity copper for superior load handling and operational longevity.

• Fully Sealed Corrugated Tank: The corrugated design accommodates oil expansion and contraction dynamically, removing the need for a separate conservator tank and enabling a maintenance-free structure.

• Optimized Core Material: Manufactured using Cold-Rolled Grain-Oriented (CRGO) silicon steel to ensure minimal no-load losses and high efficiency.

• Low Noise & Low Loss Operation: Specifically engineered to reduce operational noise while keeping no-load current at or below 0.5%.

• International Standard Compliance: Manufactured and tested in full compliance with IEC 60076 specifications.

Technical Parameters

Industrial Applications

This heavy-duty 630kVA transformer is engineered to support major infrastructure and continuous power loads, including:

• Large factories and manufacturing facilities

• Main power distribution centers

• Civil and municipal infrastructure projects

• Mining operations and extraction sites

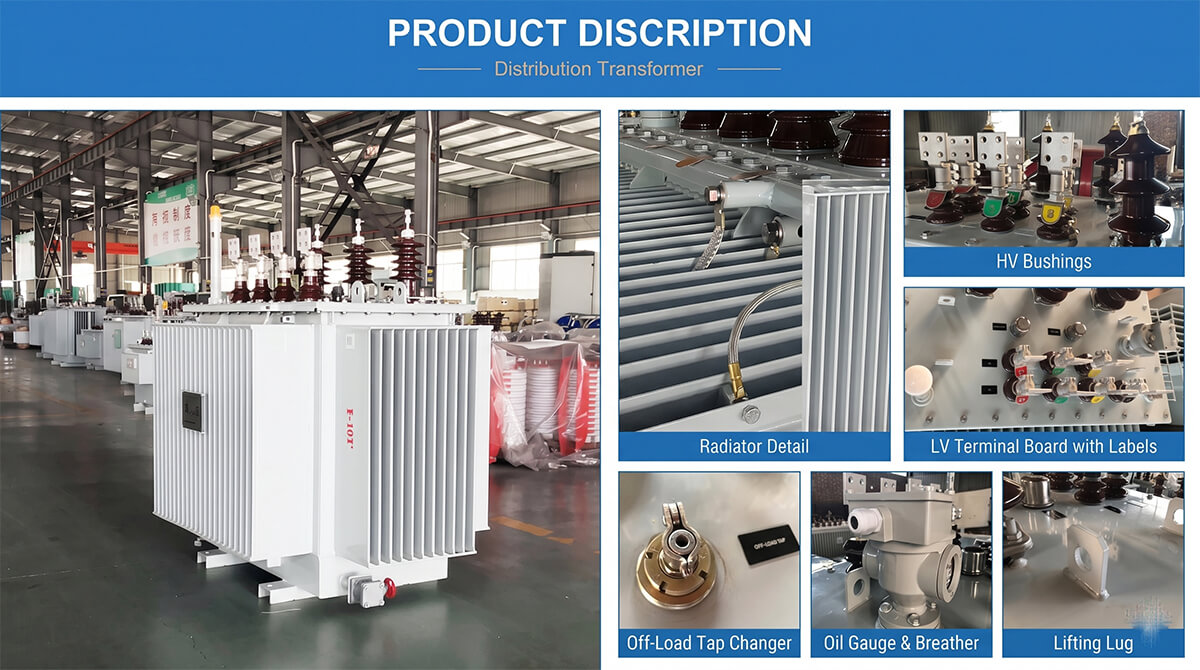

Optional Accessories (Factory Installed)

To meet specific project specifications, the following accessories are available for integration:

• Precision oil level gauge

• Dial thermometer

• Protective safety enclosure

• Heavy-duty casters for mobility

• High and low voltage bushings
