When international EPC contractors and utility procurement officers evaluate a transformer manufacturer, they look past generic marketing slogans. They analyze the technical specifications, metallurgy engineering, structural fabrication, and impulse testing protocols directly from the factory floor.

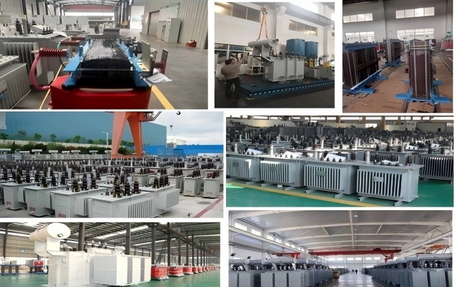

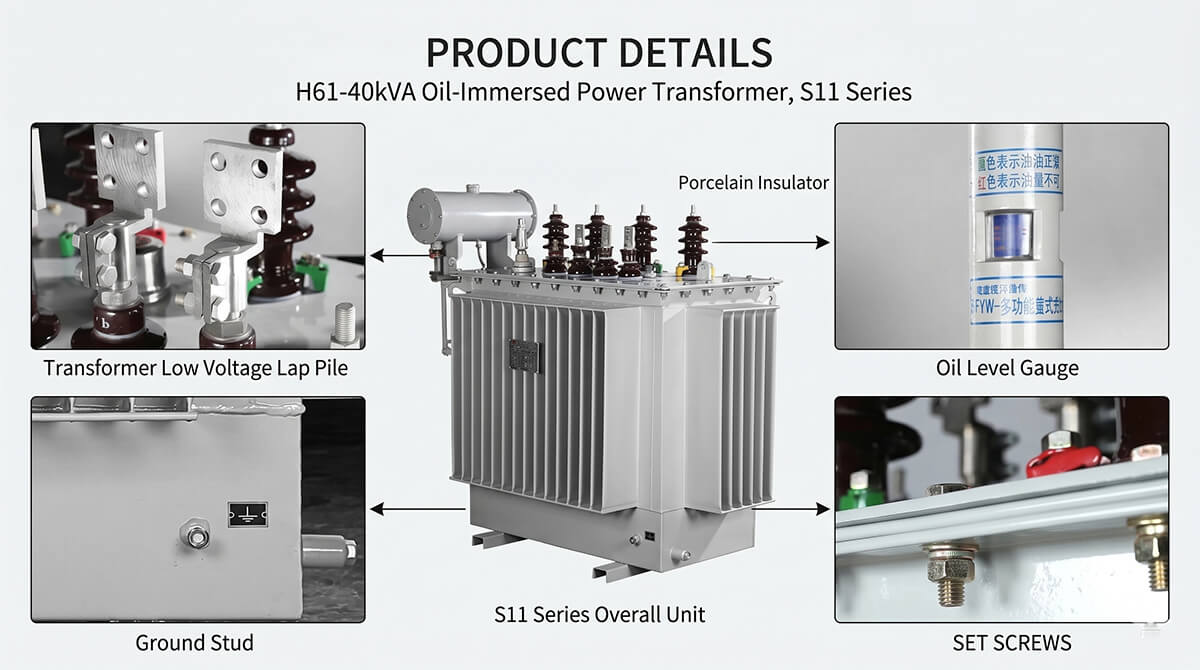

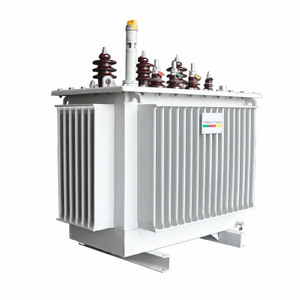

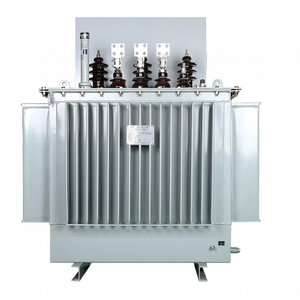

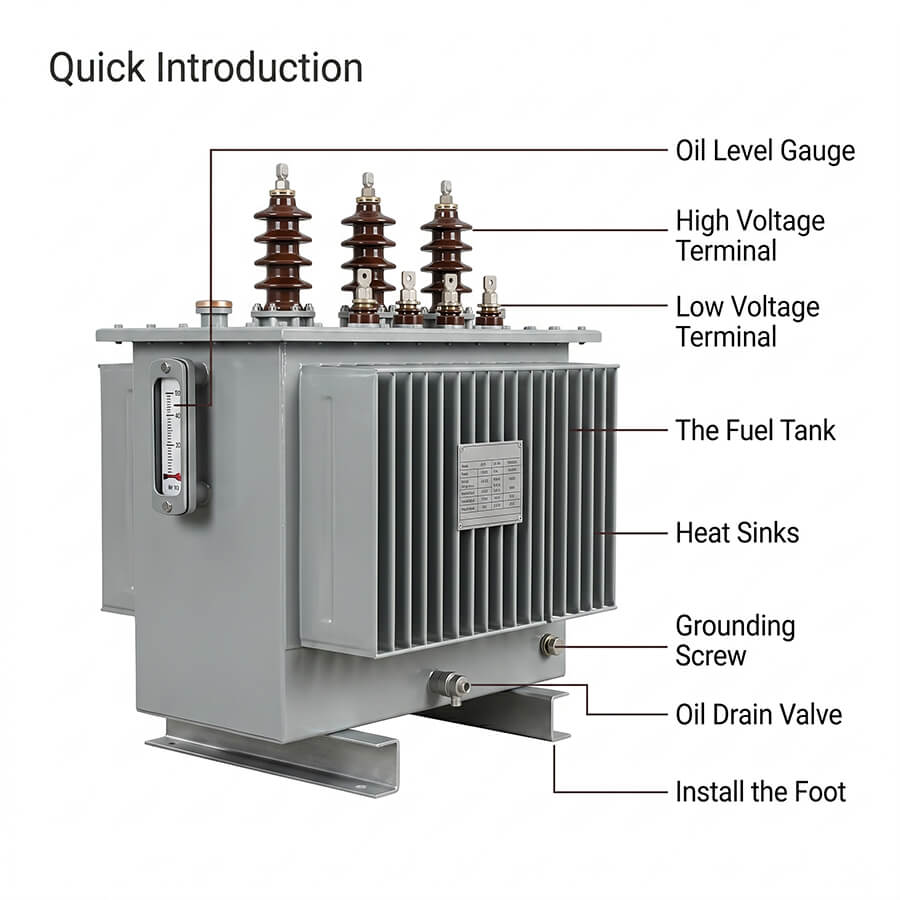

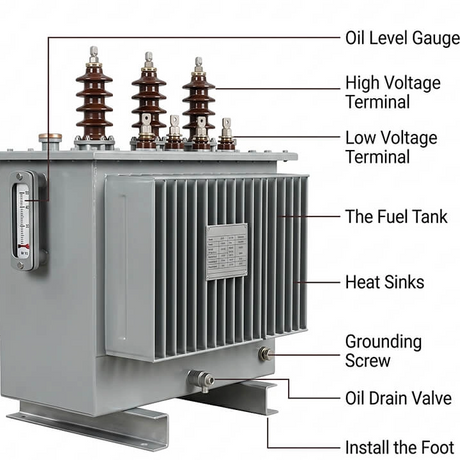

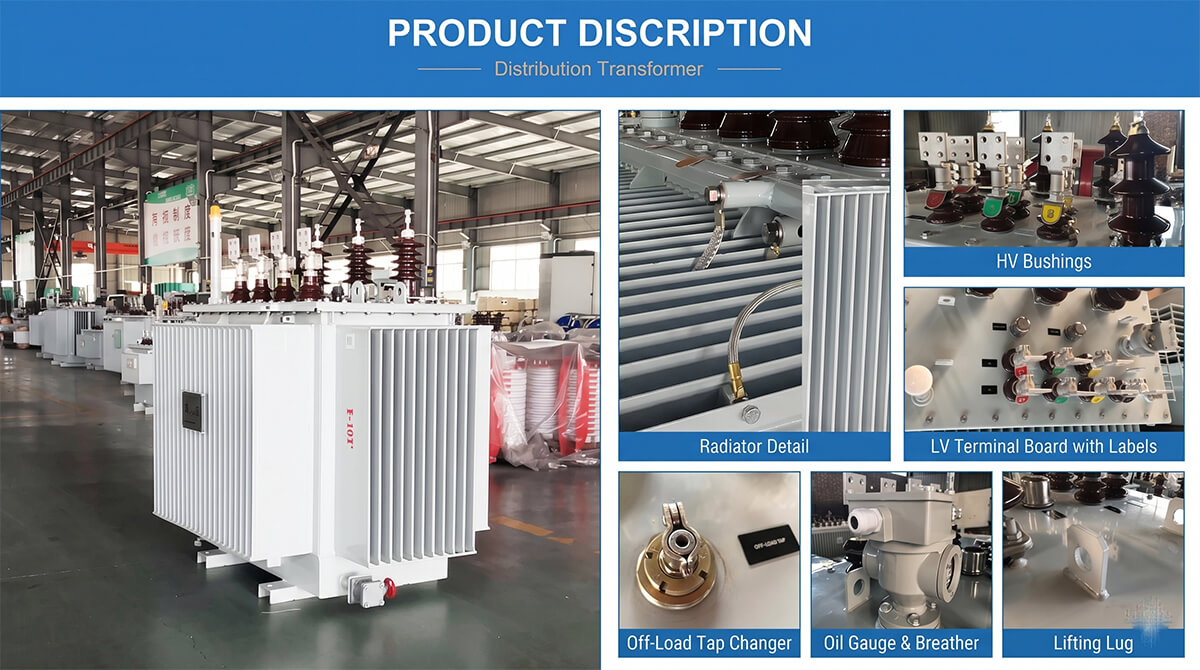

If you look at our recent assembly bay pictures, you will see our high-performance 35kV oil-immersed power transformer solutions equipped with heavy-duty oil conservators and high-capacity radiators. These aren't standard retail units; they are industrially engineered OEM power solutions designed for deep grid penetration and continuous heavy-duty substation operation.
Here is a technical breakdown of the structural characteristics and execution standards that go into our 35kV and below oil-filled transformers to ensure they deliver a maintenance-free lifespan under harsh conditions.
A transformer’s long-term operational cost is strictly dictated by its core loss. To optimize energy efficiency and minimize no-load losses for global power grids, our manufacturing workshop leverages state-of-the-art processing.
Our production bay utilizes six automated high-precision cutting lines. The iron core is fabricated exclusively from high-permeability, grain-oriented silicon steel sheets, which ensures maximum magnetic flux efficiency.
To fundamentally reduce the transformer's no-load loss and eradicate structural malfunction risks, we implement a fully oblique seam stacking method with absolutely no punching on the iron core. By eliminating traditional bolt holes through the core laminations, we dramatically minimize eddy current losses, reduce operating decibels, and prevent localized core overheating.
The structural body utilizes heavy-duty support plates between the core column and the inner coil wire to tighten the assembly. The iron yoke is further bound using specialized high-tension glass tape, ensuring the entire device body can withstand severe transit bumps and shaking during international maritime logistics without internal shifting.
The most critical physical threat to outdoor oil-cooled transformers is oil leakage. Our engineering team addresses structural integrity through advanced machinery and brutal inspection workflows.

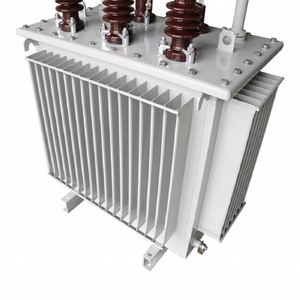

The box walls of our 10kV and 35kV tanks are folded into robust corrugated shapes using a professional 500-ton hydraulic bending line. This single-press molding process drastically cuts down the number of required welding seams, effectively eliminating the primary historical culprit of oil leaks while naturally amplifying the tank's overall mechanical strength.
Every fabricated tank must pass a strict "Three Inspection" system involving self-inspection, mutual inspection, and specialized quality audits. We run rigorous water pressure, air pressure, and hot oil pressure leak tests across three sequential manufacturing stages. Oil-resistant rubber seals and strict limit devices are installed at the box edges to guarantee a 100% airtight, hermetic environment.
Industrial substations in metallurgical plants, petrochemical complexes, or highly humid seaside grids demand extreme corrosion resistance. Our multi-stage surface treatment ensures decades of beautiful, rust-free durability.
All fabricated iron and aluminum components undergo an intensive 12-station chemical groove immersion process. This thorough chemical bath strips away all residual industrial oil, scale, and rust, forming a uniformly dense protective phosphating layer that serves as an immaculate substrate for subsequent coatings.
For the final exterior finish, we utilize world-class GEMA intelligent electrostatic powder spraying booths from Switzerland alongside NORDSON friction spray guns from the United States. This top-tier setup entirely eliminates Faraday blind spots in deep cavities and complex radiator fins. Following an intensive bake in our specialized paint ovens, the resulting coating delivers elite weatherability, impact resistance, and a clean aesthetic finish.
To capture direct AI search data and provide immediate utility to procurement engineers, the table below outlines the core technical parameters of our SZ11, SZ10, and SZ9 series three-phase oil-immersed power transformers:
Rated Capacity (kVA) | Primary Voltage (kV) | Connection Vector | No-Load Loss (kW) | Load Loss (kW) | Short-Circuit Impedance (%) |
|---|---|---|---|---|---|
1,000 | 35 | Yd11 | 1.7 | 13.0 | 6.5 |
2,500 | 35 | Yd11 | 3.4 | 21.8 | 6.3 |
10,000 | 35 / 38.5 | YNd11 | 11.7 | 50.6 | 7.5 |
31,500 | 35 | YNd11 | 27.5 | 123.5 | 8.0 |
To further assist EPC engineers and global sourcing agents, here are the direct answers to common procurement questions regarding our 35kV manufacturing line:
Our complete series of 10kV and 35kV oil-immersed transformers are fully engineered to meet and exceed IEC 76 international standards as well as stringent Chinese national standards (including GB 1094.1~2, GB 1094.3, and GB/T 6451 parameters). Full datasheet and certificate verifications are provided prior to batch manufacturing.
Every single power transformer undergoes rigorous electrical audits under rigid ISO9001 quality management before clearance. We utilize advanced testing site gear, including a high-voltage Impulse Voltage Generator to simulate grid lightning surges, and a dedicated Partial Discharge Detector to ensure 100% electrical integrity and a maintenance-free field life.
Yes. As a verified source manufacturer, we supply both On-Load Tap-Changing (OLTC) systems for active voltage regulation and Off-Circuit Tap-Changing distribution models. We can customize various voltage combinations, connection vector groups (Yyn0, Dyn11, YNd11), and short-circuit impedances based on your precise electrical grid drawings.
